Water Air Solenoid Valve 3/2 NC PTFE Seal Solenoid Armature Stem

Water Air Solenoid Valve 3/2 NC PTFE Seal Solenoid Armature Stem

Solenoid Valve Armature Assembly Categories:

The armature assembly can usually be categorized according to the number of interface positions, switching functions and connection.

1. Port / positions: 2/2 way or 3/2 way (The first figure shows the number of ports, the second shows the number of positions)
2. Function: Normally closed (NC), or normally open (NO)
3. Connection: Thread or flange

Features of Armature Assembly:

The main characteristics of the armature of solenoid valve can be reflected in the following aspects.

1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection

Main dimension of Solenoid Valve Armature Assembly:

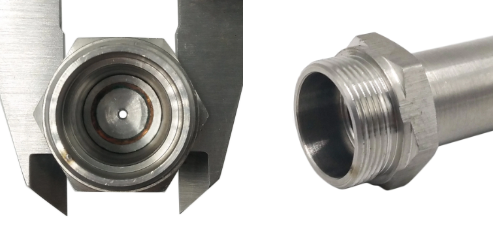

Details of Solenoid Valve Armature Assembly:

3/2 Way NC M20 Thread

Plunger Slot PTFE Seal

Technical data of Solenoid Valve Armature Assembly:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

FAQ:

How can you tell if your solenoid is bad?
If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.

What is a solenoid?
A solenoid is an electric coil that is wrapped around a ferromagnetic substance (such as iron) that acts as an electromagnet when the current is passed through it.

How does a solenoid work?
When the electric current is passed through the coil, an electromagnetic field is created. This electromagnetic field causes the plunger to move up or down. This mechanism is used by solenoid valves to open or close the valve.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
