| Brand Name : | ZHONGHENG |
| Model Number : | ZH 914 |
| Certification : | CE |
| Price : | 14,000 USD |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 50 sets /month |
| Delivery Time : | 40 working days |
Machine description
Machine specifications
| Voltage | 380V 3Phase 50HZ, or according to client’s request | ||
| Thickness of sheet | 0.3-0.8mm | Productivity | 10--12 m/min |
| Material width | 1056mm | Effective width | 914mm /36 inch |
| Dimension | 8800mm*1650mm*1200mm | Weight(Approx) | About 5.5T |
| Driven system | Hydraulic drive | Transmission type | Chain&Sprocket |
| Roller stations | 14 rows | Shaft | 70mm solid shaft |
| Under frame | 350H-beam | Connecting plate | 16mm steel |
| Roller material | High grade 45# steel, hard chrome plated | Chain | 1 inch |
| Motor power | 5.5kw | Hydraulic power | 4kw |
| Cutting type | Guide pillar | Operation | Touch screen |
| PLC brand | Delta | Inverter brand | Delta |

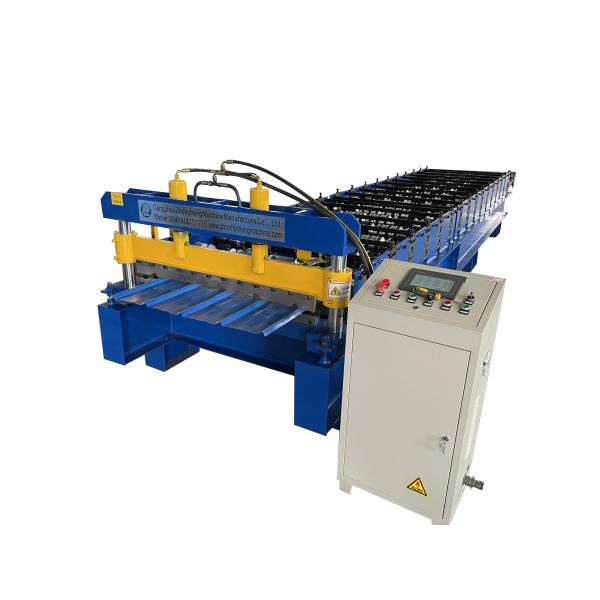

MACHINE PICTURES



Machine components
Part 1 | 5T Decoiler | set 1 | Manual |
| Part 2 | Main forming machine | set 1 | Chains transfer |
| Part 3 | PLC control station | set 1 | Delta brand |
Part 4 | Hydraulic pump station | set 1 | Hydraulic |
| Part 5 | Run out table | set 2 | 3 meters |
Spare parts
| No. | Item | Qty |
| 1 | Limited switch | 2 |
| 2 | Chains | 2 |
| 3 | Value | 1 |
| 4 | Relay | 1 |
| 5 | Chains Joint | 2 |
| 6 | Encoder wheels | 2 |
|
