    1080P HD Hdmi Wifi Transmitter COFDM Modulation SMPTE 424M Standard

    HD Wireless COFDM Digital Video Transmitter for UAV Drone Application


    Such new design 1080P HD transmitteDS-HDT103 is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.


    Features:

    1. COFDM modulation;
    2. Built-in with HDMI or HD-SDI interface(single selection);
    3. Support composite standard video and balanced audio input;
    4. All parameters can be adjusted by user;




    Transmitter parameter:

    Power section


    DC InputDC11V~DC16V
    Working Current1.1A DC12.5V

    Transmitter section


    Frequency range Output250MHz-320MHz330MHz- 450MHz / 1000MHz --4400MHz,or can be customized according to customer's request.
    ModulationCOFDM
    RF bandwidth4/8MHz(adjustable)
    Power output1-3W(adjustable),in 1dB step
    SHG>52dBc
    EncryptionAES128/256bits
    ConstellationQPSK,16QAM,64QAM
    FEC1/2,2/3,3/4,5/6, 7/8
    Guard Interval1/32,1/16,1/8,1/4
    Carrier2K
    FlatnessFull band≤2dB,8MHz0.5dB
    AV InterfaceHDMI/SDI(have to choose one)
    CNR(weighting)58dB
    Sloping field SNR(unweighted)50dB

    Analog Audio


    Balanced audio input rangeVmax=±15V
    Unbalanced audio input rangeVmax=3Vpp
    HD interfaceSDI/HDMI(single selection)
    EncryptionAES 128/265 bit / ALLTECH Basic scrambling
    KIIMPOK TECHNOLLOGY CO..,, LLIIMIITED D
    StandardSMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
    Input range800±80(mV)
    VersionsHDMI 1.3
    HDCP protocolYes

    Encoding support


    AV rate64,96,112,128,160,192,224,256,320,384Kbps(adjustable)
    Audio encoding modeMPEG1 Layer2
    CBER<2.0E-4
    Video resolutionMaximum 1920×1080P/I@ 60P
    Video codingH.264
    Video rate500kbps-16.68Mbps(autoadaptation)
    FormatYCbCr4:2:2
    OperatingTemperature-25℃~55
    Storage Temperature-40℃~70
    Distance20-60km LOS distance(on air) 1-3km NLOS distance(Ground to ground)

    Appearance characteristics


    Dimension167*90*25mm
    Weight515g


    Our Services

    1. One-stop ODM/OEM solution;
    2. 24-hour technical support;
    3. Lifelong maintenance (Replacement parts will be charged after a year);
    4. Provide professional system design and construction;
    5. You will get good price and high quality here since we are an experienced manufactory in wireless microwave transmission area for over 17 years, we are the source.

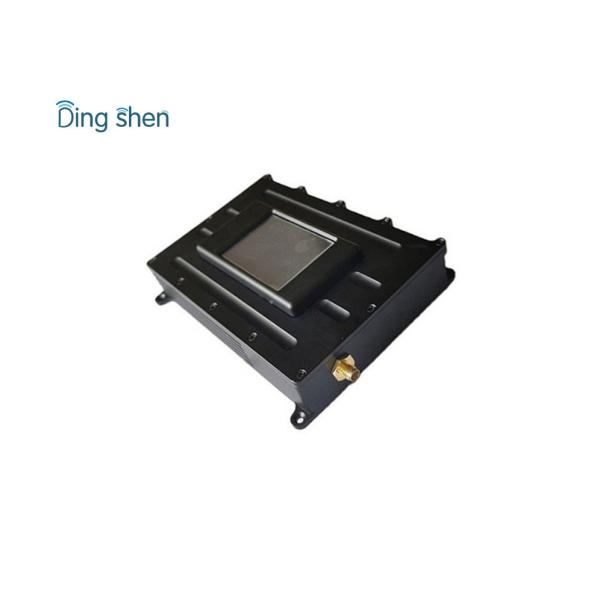

    Quality 1080P HD Hdmi Wifi Transmitter COFDM Modulation SMPTE 424M Standard for sale
