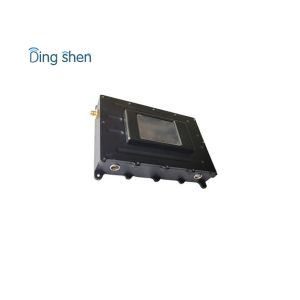

    Ultra Thin 2W Uav Communication System With Integrated OLED Display Control Interface

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-HDT3W
    Price : Negotiaiton
    Payment Terms : T/T
    Supply Ability : Quantity(Sets) 1 - 100000 >100000
    Delivery Time : 3-7 working days
    Certification : CE/FCC
    • Product Details
    • Company Profile

    Ultra Thin 2W Uav Communication System With Integrated OLED Display Control Interface

    20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data


    Description:


    DS-HDT2W is an ultra-thin, ultra-small wireless communication device with integrated OLED display control interface with high brightness and low power consumption. Itscan transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting. KP-HDT2W widely used in UAV aviation filming,military,covert investigation, image monitor and real-time wireless video transmission and so on.


    Features of 1.2g drone receiver and transmitter with whip antenna

    * COFDM modulation, Stable transmission

    * NTSC/PAL automatically adapt ,support user adjustable;
    * Supports high-speed mobile NLOS ( Non Light Of Sight ) transmission;
    * Lithium battery for power supply (continuous working time is 1 hour max)
    * Adjustable working frequency, bandwidth,RF power and etc.


    Specification:


    Frequency300-900Mhz (option), or other band customized
    ModulationCOFDM
    Consumption<40W
    EncryptionAES 128 bits
    ConstellationQPSK(4QAM),16QAM,64QAM
    FEC1/2 2/3 3/4 5/6 7/8
    Guard Interval1/32 1/16 1/8 1/4
    Carrier2K,8K
    Bandwidth2/3/4/6/7/8MHz (option)
    Video rate200kps~20000kps (adjustable)
    RF power2 watt
    Video inputHDMI,CVBS,AHD,SDI (option)
    Video codingH.265
    Video resolution1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
    Transmission distance20km from UAV to ground station; 1-4km from ground to ground
    Working voltageDC12V
    Working Temperature-20℃ -- +55℃
    Dimension132*90*26mm
    Weight420g
    Box colourBlack
    Antenna portN type


    Our Service:


    1. One-stop ODM/OEM solution;
    2. 24-hour technical support;
    3. Lifetime maintenance (Replacement parts will be charged after a year);
    4. Provide professional system design and construction;
    5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
    Whatever your wireless surveillance application or budget, we can find the right solution for you.
    Contact us! We can customize any solution to fit your requirements.
