Subminiature Cartridge Slow Blow Time-Lag 3x10mm 3.6x10mm Tube
Glass Fuse
Series:3x10mm glass fuse
Product keywords: No.332/3*10mm 3.6x10mm tube glass fuse
332 series are time-lag and low breaking capacity fuses, suitable
for 250V AC voltage, breaking capacity less than 50A protection
circuit.
332 series fuses are mainly used in lighting, power supply and
power adapters.
Time-current characteristics: Time-lag fuse (T)
Dividing power: 50A@125Vac,35Aor10In@250Vac,50A@250Vac
Standard: IEC 60127-3/IV
Accreditation: cURus,PSE,TUV,CQC,KC
Material: shell - glass tube, metal cap - nickel - plated brass,
lead cap - nickel - plated cap, tin - plated copper wire
Operating temperature: -55℃ ~ +125℃
Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds
(manual welding)
Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5
seconds;
Storage condition: +10℃ ~ +60℃;The annual average relative humidity
is less than 75%, and the relative humidity reaches 95% for a
maximum of not more than 30 days
| Time vs Current Characteristics: IEC60127 -3/IV |
| Rated current | 150% | 210% | 275% | 400% | 1000% |
| 250mA~7A | >1h | <2min | 400ms~10s | 150ms~3s | 20ms~150ms |
| 8A~10A | >1h | <5min | 1s~20s | 150ms~3s | 20ms~ 150ms |
| Electrical Characteristics at 25C |
| Rated | Ratede Current | Ratede Voltage | Max Dissipation Drop(mV) | Max.Power Dissipation(mW) | Typical Cold Resistance (mΩ) | Nominal Melting I2t(A2sec) | Breaking Capacity | Approvals |
| cURus | PSE | TUV | CQC | KC |
| 125V | 250V | 250V | 250V | 250V | 250V |
| 0250 | 250mA | 250 V AC | 240 | 220 | 600 | 0.221 |
50A/125V AC
35A or 10In/250V AC | ● | ● | ○ | ● | ○ | ● |
| 0315 | 315mA | 250 V AC | 220 | 250 | 470 | 0.336 | ● | ● | ○ | ● | ○ | ○ |
| 0350 | 350mA | 250 V AC | 210 | 250 | 340 | 0.397 | ● | ● | ○ | ○ | ○ | ○ |
| 0500 | 500mA | 250 V AC | 190 | 310 | 250 | 1.00 | ● | ● | ○ | ● | ● | ● |
| 0630 | 630mA | 250 V AC | 180 | 360 | 150 | 1.35 | ● | ● | ○ | ● | ● | ● |
| 0800 | 800mA | 250 V AC | 160 | 430 | 117 | 1.56 | ● | ● | ○ | ● | ● | ● |
| 1100 | 1.00A | 250 V AC | 140 | 500 | 80.0 | 6.50 | ● | ● | ● | ● | ● | ○ |
| 1125 | 1.25A | 250 V AC | 130 | 600 | 56.0 | 4.62 | ● | ● | ● | ● | ● | ○ |
| 1150 | 1.50A | 250 V AC | 120 | 730 | 45.0 | 10.6 | ● | ● | ○ | ○ | ○ | ○ |
| 1160 | 1.60A | 250 V AC | 120 | 730 | 50.0 | 10.9 | ● | ● | ● | ● | ● | ○ |
| 1200 | 2.00A | 250 V AC | 100 | 870 | 38.0 | 20.3 | ● | ● | ● | ● | ● | ○ |
| 1250 | 2.50A | 250 V AC | 100 | 1000 | 28.0 | 32.5 | ● | ● | ● | ● | ● | ○ |
| 1315 | 3.15A | 250 V AC | 100 | 1200 | 18.5 | 57.0 | ● | ● | ● | ● | ● | ○ |
| 1400 | 4.00A | 250 V AC | 100 | 1400 | 14.5 | 94.1 | ● | ● | ● | ● | ● | ○ |
| 1500 | 5.00A | 250 V AC | 100 | 1400 | 12.69 | 121 | ● | ● | ● | ● | ● | ○ |
| 1630 | 6.30A | 250 V AC | 100 | 1400 | 8.50 | 225 | ● | ● | ○ | ● | ● | ○ |
| 1800 | 8.00A | 250 V AC | 100 | 1400 | 6.40 | 169 | ● | ● | ○ | ○ | ● | ○ |
| 2100 | 10.00A | 250 V AC | 100 | 1400 | 3.95 | 196 | ● | ● | ○ | ○ | ○ | ○ |
Note: (1) Permissible continuous operating current is ≤100% at
ambient temperature of 23°C (73.4°F)
(2) The cURus certification by 125V and 250V; the others
certification by 250V.
(3) The current values used for calculating I2T should be within
the standard range of 8ms ~ 10ms.
Series: 3x10mm tube glass fuse
Product keywords: No.312/3*10mm 3.6x10mm time-lag glass fuse
Series 312 are time-lag and low breaking capacity fuses, suitable
for 250V AC voltage, breaking capacity less than 50A protection
circuit.
Series 312 fuses are mainly used in lighting, power supply and
power adapters.
Time-current characteristics: time-lag fuse (T)
Dividing ability: 50A@250Vac / 50A@125VAC
Standard: UL 248-14
Accredited: cULus
Material: shell - glass tube, metal cap - nickel - plated brass,
lead cap - nickel - plated cap, tin - plated copper wire
Operating temperature: -55℃ ~ +125℃
Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds
(manual welding)
Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5
seconds;
Storage condition: +10℃ ~ +60℃;The annual average relative humidity
is less than 75%, and the relative humidity reaches 95% for a
maximum of not more than 30 days

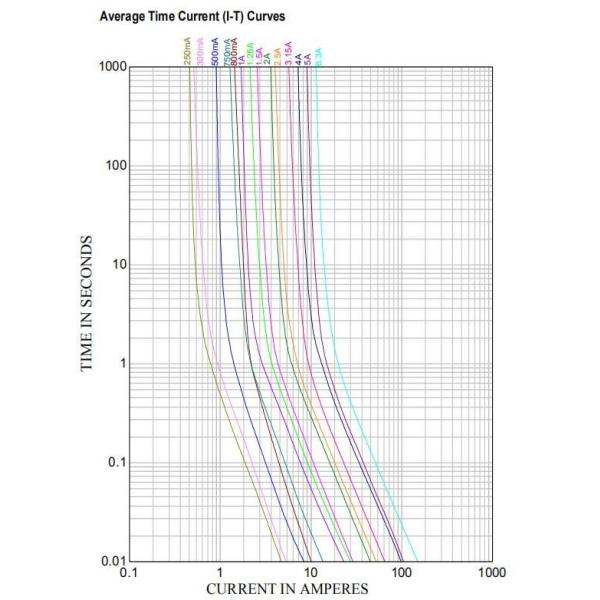

| Time vs Current Characteristics: UL248-14 |
| Rated Current | 100% | 200% |
| 250mA~10A | >4h | 5s~60s |
| Electrical Characteristics at 25℃ |
Amp Code | Ratede Current | Rated Voltage | Typical cold Resistance(mΩ) | Nominal Melting I²t(A²sec) | Breaking Capacity | Approvals |
| |
250V AC
| | |
50A @ 250V AC 50A @ 125V AC
| cULus |
| 0250 | 250mA | 674 | 0.221 | 125V | 250V |
| 0300 | 300mA | 485 | 0.281 | ● | ● |
| 0315 | 315mA | 415 | 0.302 | ● | ● |
| 0350 | 350mA | 340 | 0.384 | ● | ● |
| 0400 | 400mA | 310 | 0.490 | ● | ● |
| 0500 | 500mA | 285 | 0.706 | ● | ● |
| 0750 | 750mA | 114.5 | 1.85 | ● | ● |
| 0800 | 800mA | 140 | 1.00 | ● | ● |
| 1100 | 1.00A | 115 | 5.28 | ● | ● |
| 1125 | 1.25A | 57.8 | 7.29 | ● | ● |
| 1150 | 1.50A | 52.0 | 8.41 | ● | ● |
| 1160 | 1.60A | 45.0 | 8.75 | ● | ● |
| 1200 | 2.00A | 33.0 | 20.3 | ● | ● |
| 1250 | 2.50A | 27.95 | 27.6 | ● | ● |
| 1300 | 3.00A | 25.0 | 64.0 | ● | ● |
| 1315 | 3.15A | 21.0 | 42.3 | ● | ● |
| 1350 | 3.50A | 19.0 | 68.5 | ● | ● |
| 1400 | 4.00A | 14.7 | 96.1 | ● | ● |
| 1500 | 5.00A | 11.9 | 110 | ● | ● |
| 1630 | 6.30A | 8.50 | 228 | ● | ● |
| 1700 | 7.00A | 4.50 | 64.0 | ● | ● |
| 1800 | 8.00A | 6.20 | 77.4 | ● | ● |
| 2100 | 10.00A | 5.10 | 121 | ● | ●
|
Note: 1.Permissible continuous operating current is 100% at ambient
temperature of 23°C (73.4°F)
2.The current values used for calculating I2T should be within the
standard range of 8ms ~ 10ms.
