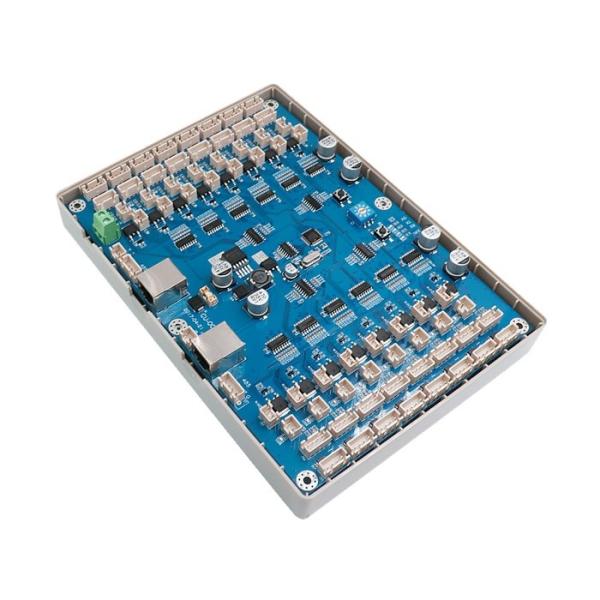

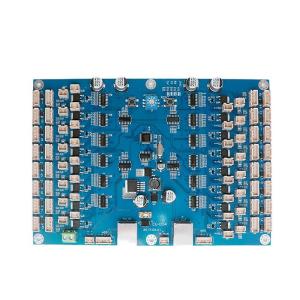

RoHS Electronic PCB Board Software Central Control Module Locking
System
Product parameters
| Model | KR- CU |
| Brand | KERONG |
| Definition | Electronic rotary latch controller |
| Function | Receive commands to control lock and feedback status |
| Dimension | L200*W140*H15mm |
| Material | PCB (Printed Circuit Board) |
| The dimension of protecting the shell | L210*W150*H35mm |
| Microprocessor module | STM8S103K3T6 QFP32(P0.8mmBS7*7mm) |
| Connector model | RJ45, 8P8C |
| Working voltage | 12V~24V |
| Stand-by power consumption | 70mA(12V),40mA(24V) |
| Dynamic power consumption | 200mA~3000mA |
| Reaction time | Less than 1s |
| Working temperature | -25℃ ~ +65℃ |
| Working humidity | 5% ~ 95%RH |
| Certification | CE; ISO9001; RoHS |
| OEM | Accepted |
Product Features
1, For network communication. Transfer TCP/IP commands (from PC) to
485 formats (to CU).
2, Open development, completely free to design software as you
wish.
3, Supports two AC modes: RS485 and TCP/IP.
4, Can co-work with a computer, pad, Raspberry Pi.
5, Suitable for IOS, Windows, and Linux.
6, High quality modules, stable working.
7, Working temperature: -25℃~65℃.
8, With protective case against dust.
Product Details
1, connecting locks, supply power to locks, and detect lock’s
condition (open/close);
2, connecting IR and LED light; IR to check if the locker empty or
not; LED light to light the locker when the lock is open;
3, connecting IR feedback light(bi-color); light can be extended to
every single locker. The locker is empty, the light turns green;
the locker is occupied, the light turns red.
4, connecting lock feedback light; light can be extended to every
single locker, to show whether the lock is closed or not. Lock
open, the light turns on; lock close, the light turns off.
Product Applications
Our products Locker Control Board are applied in parcel lockers, vending machine, cabinets, gym cabinets, storage cabinets, etc.
