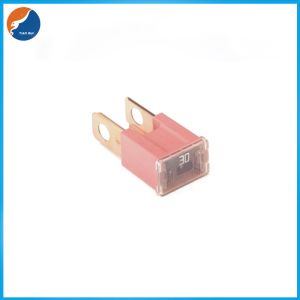

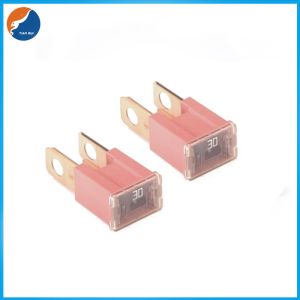

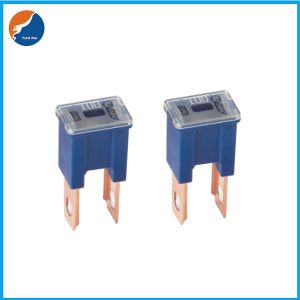

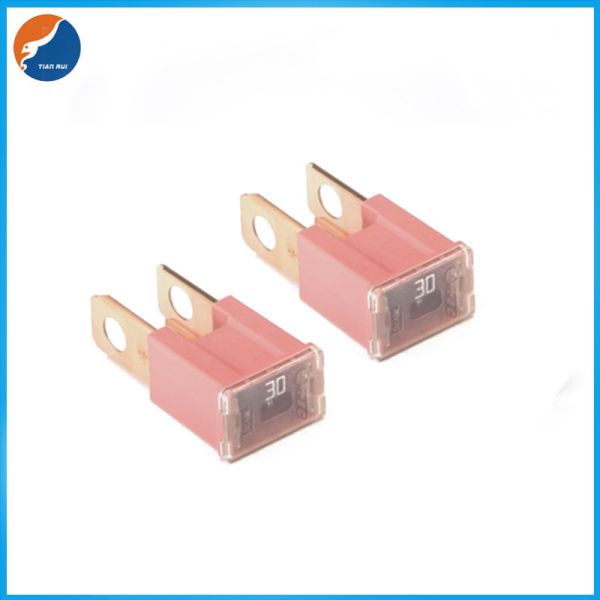

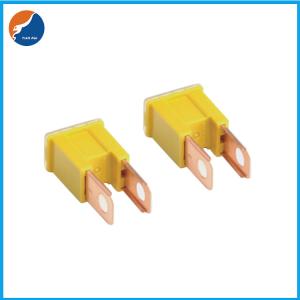

SBFC-BT Straight Blades Slow Blow Vehicle Automobile Automotive
Square Jcase Auto Fuse
SBFC-BT Slow Blow Auto Fuse
Rated current: 30A to 140A
Rated voltage: below DC32V
Safe breaking capacity: 1000A
Operating temperature: -40°C~120°C
Standard: IS08820-4
Production location: Japan
Plating:-
Packing: 500pcs
Insertion force:-
Pull out force:-
Suggested torque: 6.0N+1
Fusing Characteristics
| Rating current | Fusing time |
| Min. | Max. |
| 110% | 100h | ---- |
| 200% | 5 s | 100 s |
| 350% | 0.2 s | 7 s |
| 600% | 0.04 s | 1 s |
Product Model Table
| Part No. | Rated current(A) | Color | Siemens | Voltage drop |
| 3136 | 30 | 0000 | 3.0 mΩ | 94 mV |
| 3146 | 40 | 0000 | 2.2 mΩ | 98 mV |
| 3156 | 50 | 0000 | 1.7 mΩ | 95 mV |
| 3166 | 60 | 0000 | 1.3 mΩ | 83 mV |
| 3176 | 70 | 0000 | 1.0 mΩ | 93 mV |
| 3186 | 86 | 0000 | 0.84 mΩ | 66 mV |
| 3206 | 100 | 0000 | 0.67 mΩ | 66 mV |
| 3226 | 120 | 0000 | 0.62 mΩ | 62 mV |
| 3246 | 140 | 0000 | 0.55 mΩ | 86 mV |
Contact Details:
Andy Wu
Email: andy@tianrui-fuse.com.cn
Tel/Whatsapp: +86 13532772961
Wechat: HFeng0805
Skype: andywutechrich
QQ: 969828363
Packaging Details
PE bag or polybag in cartons
Can receive your package way
Our Services
- 1. For stock, please contact with our online service.
- 2. Stock items Shipping by courier as DHL, FEDEX, UPS, EMS.
- 3. The Payment term we only accept T/T, Western union, paypal,
Bank transfer for stock items.
- 4. The shipping time may in 3-5 workdays for stock items.
- 5. Bulk orders in 5-20 workdays according to specific order
quantity.
- 6. Our promise 1 year warranty.
- 7. As long as quality problem,we will deal with it asap,repair or
replace or return funds.
Our slogan is "100% flawless quality, perfect service,lowest
price".
FAQ
1. Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every product, either by laser, or
by moulds.
2. Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your
design.
3. Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your
order.
4. Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5
days as soon as the payment is released.
For customized products, it takes longer.
5. Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any
problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
6. Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself.
Welcome to visit our plant at any time.
7. Q: What's the payment terms? Can I pay after you got the
products?
A: Normally we accept TT and western union. L/C is also accepted if
the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
8. Q: I couldn't find the products I want in your catalogue, can
you develop it for me?
A: Yes. we have a research & development dept.
