automatic 5 gallon bottle bag packing machine / equipment / device
Usage:
It is mainly an equipment designed for the automatic bag packing of
the finished water in the 5 gallon bottle production line to keep
the barrel clean and reduce wear. The gallon bottle can enter and
exit the machine without the need for personnel to complete the
whole process, The packaging efficiency is high, mechanized
operation reduces labor costs; the packaging speed can reach max
2200BPH, which can save two to four workers and greatly reduce bag
costs.
Features:

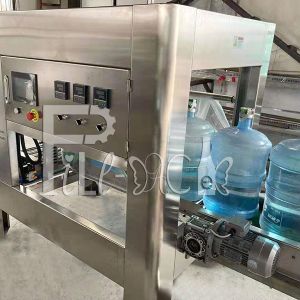

The frame part of the equipment is made of stainless steel 304
square tube welded and sheets, stable and sturdy.

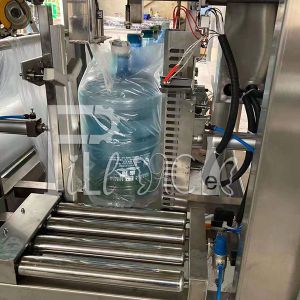

The film is cut and sealed with high-quality heating tube with the

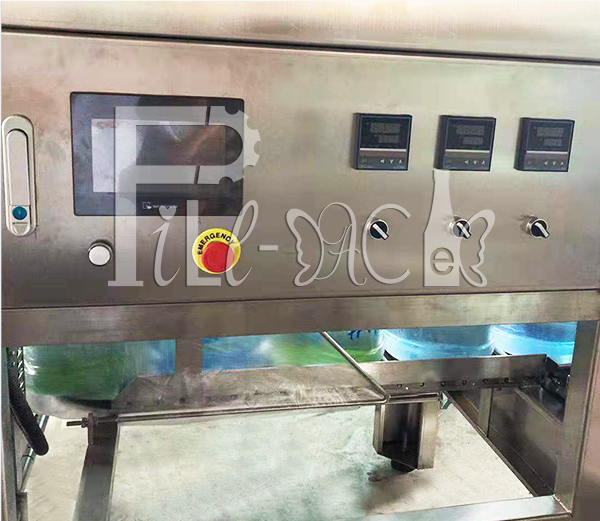

alloy cutter head. The temperature control panel and the
thermocouple maintain a certain constant temperature, so that the
bag forming once the film sticks. There are 2 groups of cutting and
heating blades including for body part and shoulder part.
The operation panel adopts a touch screen for convenient setting
various parameters. The sensors of this unit have proximity
switches, photoelectric switches, and magnetic switches. Various
sensors input the corresponding signals to the program controller
(PLC), and then the PLC controls the corresponding actions
according to the established program to ensure that the bagging
machine performs automatic bagging in a stable and orderly manner.
Characters:
1. Heating blade driving system: servo motor.

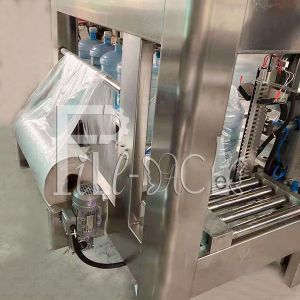

2. Motor-assisted film feeding method.
3. Sealing and cutting method: electric heating pressing
4. Gallon bottle entrance: automatic detection and automatic
delivery.
Main technology data:
| Production capacity | 0 - 2200 BPH |
| Applicable bottle | 3-5 gallon |
| Applicable film | L680-720mm Tk0.006-0.015mm Roll diameter: 350mm |
| Bottle feeding motor | 0.37KW speed ratio:1:20 |
| Film feeding motor | 0.18KW speed ratio:1:30 |
| Bottle exit motor | 0.18KW speed ratio:1:15 |
| Host cutter heating rod | 1.8kw *1pcs |
| Auxiliary cutter heating rod | 0.12kw *2pcs |
| Total Power | 2.5kw |
| Air consumption | 0.6m³/Min 6kg/cm² |
| Conveyor dynamic load | 20KG/0.5m/s. |
| Size | 2300*1400*1600MM conveyor belt is 600mm above the ground |
| Weight | 650kg |
Main configuration:
| Item | Part name | Brand |
| 1 | PLC control | Mitsubishi |
| 2 | Touch screen | Weinview |
| 3 | Proximity switch | AUTONICS |
| 4 | Photoelectric switch | AUTONICS |
| 5 | Contactor | Schneider |
Payment:
30% T/T deposit within five days after the contract is signed
against invoice of the seller. The balance of 70% T/T before
shipment
Delivery:
20 working days after deposit receipt;
