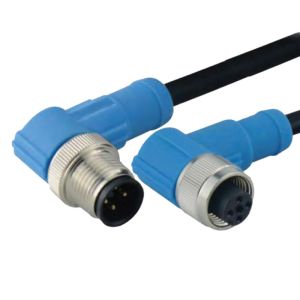

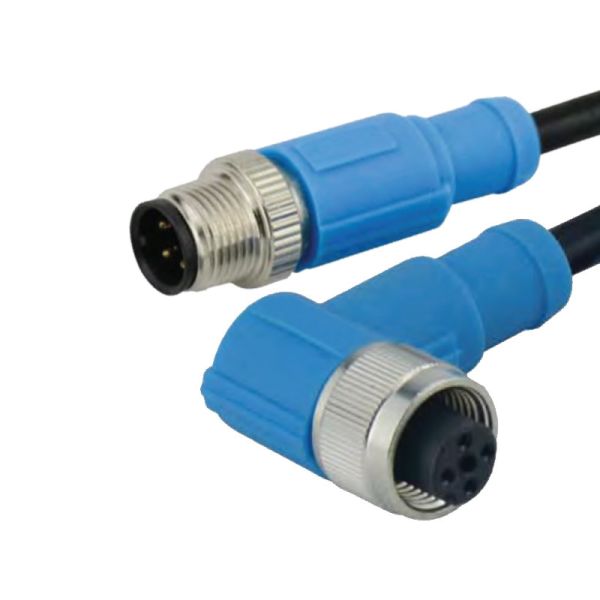

M12 B code feamle molding cable
Characteristics of M12 Series
| Prouduct | M12 5pin male to female |
| Model | MA12-0023 |
| Application | Automated sensor device, Intelligent robot |
| Feature | (1) M12 5pin male to female
(2) Contacts:Brass, Gold Plated
(3) Wire: 22AWG*2P + Braid, pure copper, PVC jacket (4) Shielded: Braid (5) Cable length: 5m, Customized |
| Electrical performance | (1) Rated current:4A
(2) Rated voltage:60V
(3) Insulation resistence:>30.5MΩ/KM
(4) Test voltage:2000V
(5) maximum resistence:<57Ω/KM |
| Environment temperature | Ambient temperature for operation: -25…80℃ |
| Waterproof Rating | IP67, IP68 |
| Standards | IEC 61076-2-101 IEC 61076-2-104 |
| Certificate | RoHS |
The M12 molded cable connectors are welded and injection-molded, provide shielded and unshielded
versions.
M12*1 thread locking mechanism, anti-vibration locking design;
Easy quick connect and disconnect coupling;
Pin configurations: 2, 3, 4, 5, 6, 8,12 and 17 positions;
A, B, C, D coding available;
Shield and un-shield Version Available;
Meets IP67/IP68 waterproof requirements;
Temperature Range: -25°C ~ + 85°C ;
Used for M12 molding cable, customized M12 overmolded Cables also
available.
Product diagram
Advantages:
1. High degree of protection IP67, safe to use on site
2. High quality gold-plated solid phosphor bronze contacts , ≥ 600
times mating life
3. Anti-vibration locking screw design
4. Support samples, retail and bulk orders
 | Nut structure, more tightly connected, firm Silicone ring effectively prevents water and dust from entering With new flame retardant/anti riot sun/antioxidant/anti-aging PVC
plastic which is flexible and durable Easy install IP67,IP68 m12 waterproof connector Male Female Sensor Connect
extension Cable |
 |  |
Certifications
Package&Shipping:
Packing Details :
1. Our standard packing: Individual part with transparent PE bag
with label;
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order
FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass
