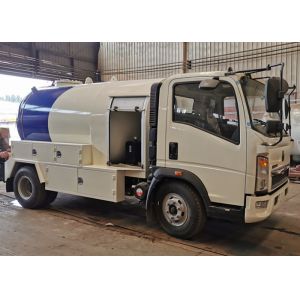

Sinotruk HOWO 4x2 116hp RHD 5000L LPG Gas Tanker Truck

    Buy cheap Sinotruk HOWO 4x2 116hp RHD 5000L LPG Gas Tanker Truck from wholesalers

    Buy cheap Sinotruk HOWO 4x2 116hp RHD 5000L LPG Gas Tanker Truck from wholesalers
    • Buy cheap Sinotruk HOWO 4x2 116hp RHD 5000L LPG Gas Tanker Truck from wholesalers
    • Buy cheap Sinotruk HOWO 4x2 116hp RHD 5000L LPG Gas Tanker Truck from wholesalers
    • Buy cheap Sinotruk HOWO 4x2 116hp RHD 5000L LPG Gas Tanker Truck from wholesalers
    • Buy cheap Sinotruk HOWO 4x2 116hp RHD 5000L LPG Gas Tanker Truck from wholesalers
    • Buy cheap Sinotruk HOWO 4x2 116hp RHD 5000L LPG Gas Tanker Truck from wholesalers
    • Buy cheap Sinotruk HOWO 4x2 116hp RHD 5000L LPG Gas Tanker Truck from wholesalers

    Sinotruk HOWO 4x2 116hp RHD 5000L LPG Gas Tanker Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW20210718
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

    Sinotruk HOWO 4x2 116hp RHD 5000L LPG Gas Tanker Truck

    Sinotruk HOWO 4x2 116hp RHD 5000L LPG dispenser refilling truck 2 Tons, 2T 2.5T LPG filling tank truck


    Product Description

    LPG rigid truck(also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.

    With different design,you can choose volume flow meter or lpg dispenser for your truck. The lpg dispenser is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.

    1) Truck Brand optional for lpg bobtail :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.

    2) Tank Size of lpg bobtail : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,

    3) Function of lpg bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

    4) Refiling System of lpg bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

    5) Truck Spec of lpg bobtail : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.

    product Specification

    Item No.Parameters
    Overall Dimension5900x2400x2650mm
    Driving ModelLeft hand drive for Nigerian market
    Gross Vehicle Weight8160 kg
    Curb Weight5850kg
    Payload2310 kg
    Wheel Base3360 mm
    Front Axle2400kg
    Rear Axle4200kg
    EngineYN4102QBZL,Diesel engine
    Engine horsepower116HP EUROIII
    Displacement3760mL (Diesel)
    Rated Rotation Speed3000 rpm
    GearboxWLY6T46,6-speed forward and 1 reverse
    CabinHowo L2W 2080 spacious cabin,2~3 Passenger allowed,with A/C
    Tire7.50R16 (6 pcs with one spare)
    Exhaust PipeAt front of Cabin for safety
    LPG tank
    Volume:5000iters
    Tank material:Q345R
    Tank diameter:1600mm
    Tank thickness:10mm
    End plate thickness:10mm
    Tank length:3070mm or as designed
    Gas phaseFlange type,DN50/2” or according to customer request
    Liquid PhaseFlange type,DN50/2” and DNDN80/3” or according to customer request
    Filling gasPropane(LPG)
    Design Pressure:1.61Mpa
    Testing pressure2.21Mpa
    Refilling Accessory
    LPG PumpChinese brand YQ15-5
    Flow rate:15.5M3/H
    10 Mpa inlet pressure

    780 r/min for rotation speed


    Radiator

    1 pc(to avoid high temperature of hydraulic oil during operation)


    Hydraulic motor1 pc
    LPG Dispenser

    English remarks with printer for receipt


    Filling hose15M,retractable
    Filling nozzleFilling nozzle for cylinder
    Level Gauge

    Chinese Float Ball type,at the rear of tank


    Safety Valve1,DN80
    Tool and Valve BoxLocated at side of LPG bobtail
    Thermometer1 pc
    Pressure Gauge2 pc
    Emergency shut off Valve3 pcs with witch inside valve box and at rear of truck
    FenderSteel
    Fire Extinguisher Holder2 sets
    Anti Static line1 set

    Sinotruk HOWO 4x2 116hp RHD 5000L LPG dispenser refilling truck 2 Tons, 2T 2.5T LPG filling tank bobtail truck

    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    FAQ


    Q: Can I buy a sample of your product for testing?

    A. Yes, that's fine. Our MOQ is 1set.


    Q: What's about the payment?

    A: 40% deposit by T/T before order,balanced by T/T before delivery.


    Q: How about quality of your factory product ?

    A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


    Q: How do you gurantee the quality of the product?

    A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

    Q: Why do you choose us?

    A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

    Q: What about your after-sale service?
    A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.


    Q: Can we visit your factory before purchasing?
    A: We welcome you to visit our factory any time and we will show you our production line .
