Electric Heating Type Electrical Glass Melting Furnace 10TPD 40%-80%

High Quality Electricial Heating Type Electric Glass Furnace

1. Brief Description

In 1902, Voelker was granted a basic patent for melting glass using the heat generated by an electric current through the batched material. Under the continuous development and improvement of the furnace design technology and electrode, this electric melting method is extensively used.
Between the year 1920 to 1925, Raeder from Norway used graphite electrode for furnace, which has successfully achieved a fully electric furnace.

In 1925, Corneljus from Sweden took this kind of electric furnace to produce amber glass and green glass. The electric melting furnace adopts the method of blanket charging and the batching material floats on the surface of glass liquid

During World War II, Borel from Swiss did plenty of research and development in electrodes, due to a shortage of fuel, he has done successful work in this territory and his research results have been promoted by a French company St. Gobain.

Glass is an electric conductor under high temperature. There are alkali metal and potassium ions in melted glass liquid. These two ions have conductivity, when the electricity through the glass liquid, the joule heat will be produced, if there is enough calories produced, it can melt the glass, which is called “Glass Electric Melting”.

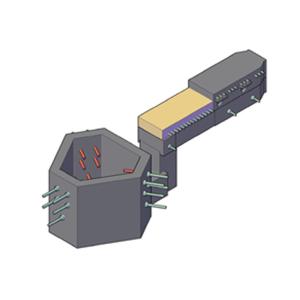

3. Furnace structure

4. Melting section of electric furnace

Using cooling top vertical melting type theory, which will concentrate the melting process. The design of melting area is benefited for glass melting and homogenization, no death zone in melting scope, that will ensure the melting efficiency of glass materials and clarification, producing high quality glass liquid.

Adopt electric fused cast AZS materials for melting and non-melting areas, clay brick, light clay insulation brick and aluminum silicate products for other parts.

5. FAQ

Q: What does JEFFER do?
A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.

Q: Can you custom the product?
A: Yes, we design the production line based on the requirement of the client.

Q: How do you control the quaility?
A: All our processes are strictly combined with ISO standard. And our professional team will supervise the quality control during the design and manufacture.

Q: How can I get the price?
A: For product line, please provide the detailed specfication of the production you want to product, then we will privode an economic plan for your reference. For engineering service, please provide your requirement, we will provide the detailed schedule and plan for your reference.

Q: If we need skilled workers, how can we solve this issue?
A: JEFFER Engineering can provide the training service to the client, our engineers will train the workers on site.

Q: How about after sales service?
A: We can provide remote service and/or site service based on the situation.

JEFFER ENGINEERING, a China professional company that designs and provides complete glass melting technology as a global solution partner for the glass industry. With overseas subsidiaries in Russia, Egypt and Indonesia, JEFFER has met its demand for rapid local activity of the glass industry's requirement.

With its more than 40 years of experience in glass melting, JEFFER has combined conventional furnace technology with new furnace concepts in modern days, it has a wide range of experience in the design, manufacture and supply of different furnace types for production of Container Glass, Tableware Glass, Flat Glass, Figure Glass, Tube Glass, Opal Glass, Fiber Glass, Sodium Silicate, Frit etc.

We put the interests of our customers first and maintain close ties through high quality work and good after sale cooperation. Many long-term relationships with our customers span several decades.

The range of products and service does not only include melting tank, JEFFER also fabricates the main utility equipment such as providing combustion system and automatic instrument. Furthermore, with our staff, JEFFER can meet the requirements of the glass industry, such as Feasibility Studies, Plant Design, Material and Equipment Supply, Commissioning and Start-Up, Construction Supervision, Contract Management and Implementation, Plant Renovation, Global Consulting Services for Plant Operation.

With 24/7 hotline service, our service staff can respond quickly to help with any problems that may arise during the glass production process.

With customer's trust and praise, we are worthy of our reputation.
