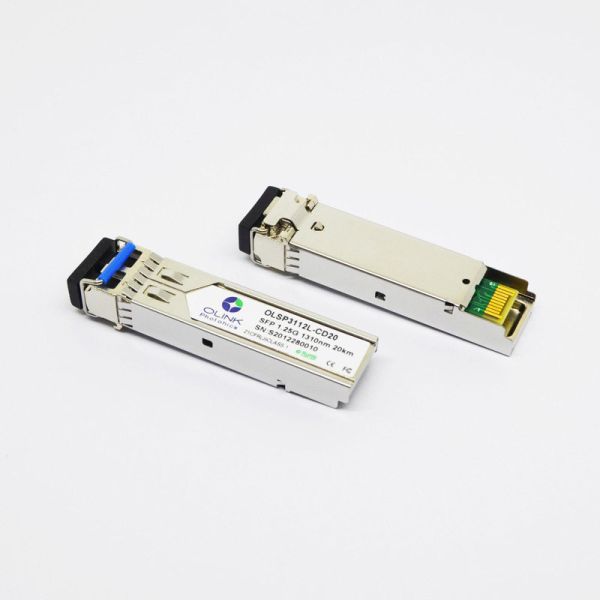

Cisco LC SMF SFP Optical Transceivers 1310nm 10km
Cisco LC SMF Transceiver Module 1000BASE-LX SFP 1310nm 10km
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % | |
Note: Stress in excess of the maximum absolute ratings can cause
permanent damage to the transceiver.
Digital Diagnostic Specifications
The OLSP3112L-C(I)D10 transceivers can be used in host systems that
require either internally or externally calibrated digital
diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 2 | 15 | ±10% | 2 |
| Transmitter output power | DTx-Power | dBm | -10 | -2 | ±3dB | |
| Receiver average input power | DRx-Power | dBm | -25 | 0 | ±3dB | |
Notes:
1. When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. The accuracy of the Tx bias current is 10% of the actual current
from the laser driver to the laser
3. Internal/ External Calibration compatible.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Operating Wavelength | λ | 1290 | 1310 | 1330 | nm | |
| Ave. output power (Enabled) | PAVE | -9 | | -3 | dBm | 1 |
| Extinction Ratio | ER | 9 | | | dB | 1 |
| RMS spectral width | Δλ | | | 0.65 | nm | |
| Rise/Fall time (20%~80%) | Tr/Tf | | | 0.26 | ns | 2 |
| Dispersion penalty | TDP | | | 3.9 | dB | |
| Output Optical Eye | Compliant with IEEE802.3 z (class 1 aser safety) |
| Receiver |
| Operating Wavelength | λ | | 1310 | | nm | |
| Receiver Sensitivity | PSEN1 | | | -22 | dBm | 3 |
| Overload | PAVE | 0 | | | dBm | 3 |
| LOS Assert | Pa | -35 | | | dBm | |
| LOS De-assert | Pd | | | -24 | dBm | |
| LOS Hysteresis | Pd-Pa | 0.5 | | | dB | |
Notes:
1. Measured at 1.25Gb/s with PRBS 2 223 – 1NRZ test pattern.
2. Unfiltered, measured with a PRBS223 – 1 test pattern @1.25Gbps
3. Measured at 1.25Gb/s with PRBS 223 – 1 NRZ test pattern for BER < 1x10-12
Product Applications
● Gigabit Ethernet
● Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems
