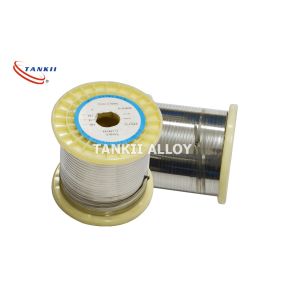

JIS C2520 NiCrA Electric Resistance Wire For Heating Elements

    Buy cheap JIS C2520 NiCrA Electric Resistance Wire For Heating Elements from wholesalers

    Buy cheap JIS C2520 NiCrA Electric Resistance Wire For Heating Elements from wholesalers
    • Buy cheap JIS C2520 NiCrA Electric Resistance Wire For Heating Elements from wholesalers

    JIS C2520 NiCrA Electric Resistance Wire For Heating Elements

    Ask Lasest Price
    Brand Name : Tankii
    Model Number : Nickel alloy wire
    Certification : ISO9001
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000kg/month
    Delivery Time : 5-30 days
    • Product Details
    • Company Profile

    JIS C2520 NiCrA Electric Resistance Wire For Heating Elements

    NiCrA/Tophet A/HAI-NiCr 80/Ni80Cr20 Resistance Flat Wire For Resistance Heating Elements


    Nichrome's metallurgical structure confers them a very good plasticity when cold.

    Production Standard: ASTM B603, DIN 17470, JIS C2520, GB/T1234.
    Our advantage:High quality,short delivery time,small MOQ.
    Characteristics:Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

    Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.

    Chemical Composition and Main Properties of Nichrome
    Properties GradeNiCr 80/20NiCr 70/30NiCr 60/15NiCr 35/20NiCr 30/20
    Main Chemical CompositionNiBalanceBalance55.0-61.034.0-37.030.0-34.0
    Cr20.0-23.028.0-31.015.0-18.018.0-21.018.0-21.0
    Fe≤ 1.0≤ 1.0BalanceBalanceBalance
    Max Continuous Service Temperature(oC)12001250115011001100
    Resisivity 20oC (Ω mm2/m)1.091.181.121.041.04
    Density (g/cm3)8.48.18.27.97.9
    Thermal Conductivity(KJ/m@ h@ oC)60.345.245.243.843.8
    Coefficient of Thermal Expansion(α × 10-6/oC)1817171919
    Melting Point( oC)14001380139013901390
    Elongation(%)> 20> 20> 20> 20> 20
    Micrographic Structureausteniteausteniteausteniteausteniteaustenite
    Magnetic PropertynonmagneticnonmagneticnonmagneticWeak magneticWeak magnetic

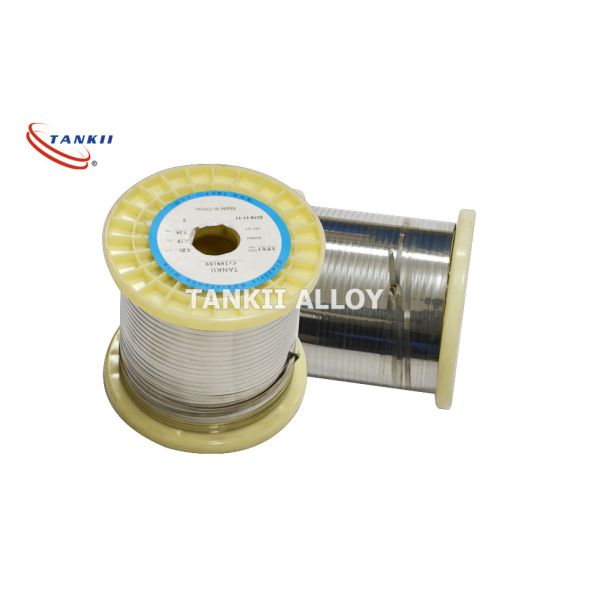

    Quality JIS C2520 NiCrA Electric Resistance Wire For Heating Elements for sale
