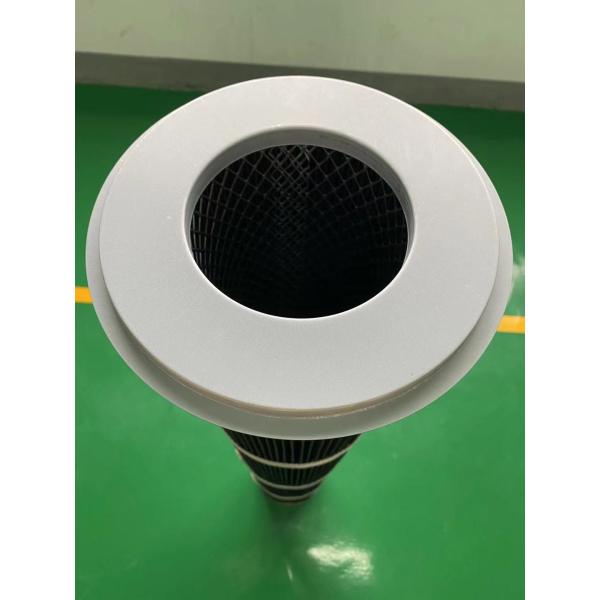

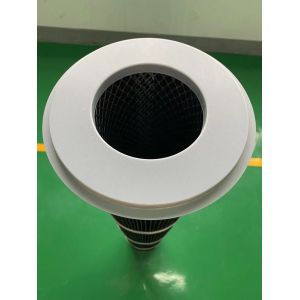

Galvanized Carbon Steel 5um Dust Filter Cartridge With Brim PTFE

Main filter media of pleated filter elements are stainless steel sintered fiber web and stainless steel weaving wire mesh.

Stainless steel sintered fiber web is a kind of multipore deep filter media, sintered with stainless steel fiber at the high temperature.The filter elements enjoy the advantage of high porosity, large filter area and good dirt holding capacity, and can also be used repeatly after chemical cleaning.

Stainless steel weaving wire cloth is weaved with stainless steel wire. These filter elements have such characteristics of good strength fastness, easy cleaning, high temperature resistance, low cost.

Application:Products are widely used in petrolum, chemical, chemical fiber, aviation, aerospace, nuclear industry, pharmaceutical, metallurgy, electric power, water treatment, food and beverage, coal chemical and other industries.

Effective Filtration Area(per 10" length)

Pleated cartridge:1.40ft2(0.13m2)

Cylindrical cartridge:0.55ft2(0.05m2)

Gaskets and o-rings:

EPDM as standard, Nitrile, PTFE, silicone, Viton and PTFE coated viton avaliable on request or by process selection.

Cartridge End Fittings:

226 Fitting, 222Fitting, DOE , SOE, Thread 1",1/2"NPT and so on.
