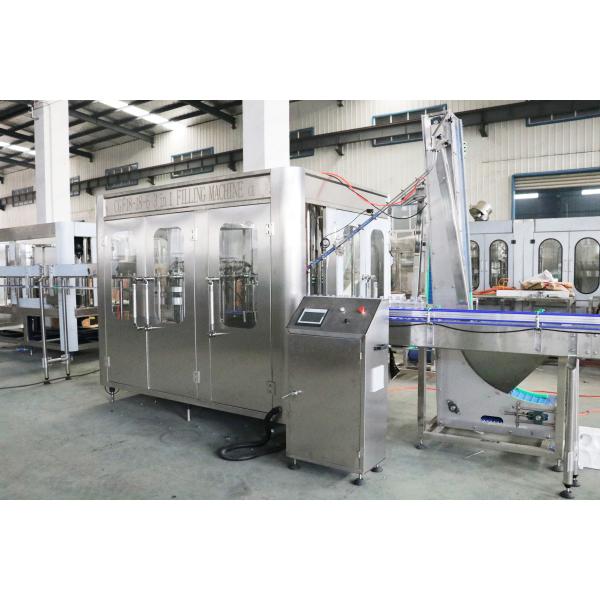

    PLC ISO 20000bph Mineral Water Filling Machine Stainless Steel 2000ml

    Ask Lasest Price
    Brand Name : Aquatrin
    Model Number : CGF
    Certification : ISO CE
    Price : USD15000-60000 1Set
    Payment Terms : T/T
    Supply Ability : 10units per month
    Delivery Time : 45days
    • Product Details
    • Company Profile

    PLC ISO 20000bph Mineral Water Filling Machine Stainless Steel 2000ml

    Product Description

    Filling Machine Benefits

    1)The water bottle filling machine is mainly used for PET bottled non-carbonated beverage production line,such as spring water and
    wine drinks.
    2)Washing,filling and capping are available in one machine.
    3)The contact time between raw materials and the outside world has been reduced to improve the health conditions, production
    capacity and economic benefits.
    4)The structure of conveying is hanging type and clamping the bottleneck to easily change bottle type.
    5)Using the advanced PLC(Programmable Logic Controller) technology.
    6)The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON.

    Containers & Specifications
    Project Name: Full Automatic Complete Mineral Water 2000-20000bph Production Line
    PH≥4.6
    drinking water
    Material
    Shape
    Filling volume
    Filling level
    (mm)
    Neck type
    PET Bottle
    Square or Round
    Bottle
    100-2000ml
    Distance from bottle neck
    According request
    As request
    Adjustable specifications of the bottle type
    [Middle Mould Base] Bottle diameter ≤105mm Bottle Height≤335mm
    Customers need to buy additional change-over parts for the different bottles
    If using square bottles, then bottle separating system will be added
    Container Label & Control Mode
    Packaging system
    Palletizing system
    Hot Melt Roll-Fed
    PVC Shrink Label
    Full Label / Half Label
    Manual / Automatic
    Packing system
    Min. Spec.
    Manual
    Low position gantry palletizer
    Robot Palletizer
    High position gantry palletizer
    Single Arm Palletizer
    Manual Palletizer
    Manual
    Film shrinker
    Wrap Around
    packer
    Robert Packing
    Machine
    1*2
    2*3
    3*4
    4*6
    3*5
    User Ambient Conditions
    Temperature: 10~40℃; Humidity: No dew
    User Electrical Supply Specification
    Voltage: 380V±5%, 3phase; Frequency: 50HZ±1%

    mineral water filling machine plant automatic 500ml big liquid packing water filling machine
    Model
    CGF 14-12-5
    CGF 18-18-6
    CGF 24-24-8
    CGF 32-32-8
    Station Number
    Washing 14
    Washing 18
    Washing 24
    Washing 32
    Filling 12
    Filling 18
    Filling 24
    Filling 32
    Capping 5
    Capping 6
    Capping 8
    Capping 8
    Production Capacity
    5000BPH(500ml)
    8000BPH(500ml)
    12000BPH(500ml)
    15000BPH(500ml)
    Way Of Filling
    Gravity Filling
    Bottle Size
    Diameterφ50－φ105,Height165－320
    Pressure
    0.7Mpa
    Air Consumption
    0.8M3/min
    Pressure Of Washing
    0.2-0.25Mpa
    Washing Water
    1.0Ton/hour
    1.2Ton/hour
    1.5Ton/hour
    2.0Ton/hour
    Total Power
    1.5KW
    2.2KW
    2.2KW
    3.0KW
    Dimensions(MM)
    2250*1650*2650
    2850*2150*2750
    2880*2180*2750
    3380*2580*2750
    Machine Weight
    3500KG
    3500KG
    3500KG
    3500KG
