Neigative Fan Cooling Pad Cooling System For single/ multiple span
Greenhouses
Greenhouse Cooling System
Neigative Fan Cooling Pad Cooling System For Greenhouses Hot Sale
Product Features:
It can ensure the temperature difference between indoor and outdoor
in 6-8 degrees Celsius, are equipped with 6 fans, so that the air
through the water curtain is more moist and low temperature, more
suitable for the growth of crops. And easy to assemble, low cost,
the only machinery needed is the pump and exhaust fan.
Specifications
Model :1380*1380*400cm, Power:380w,Machine Wind Capacity:22000m2/H
Adaptable size :60*80m2 ,Blade diameter:710mm
Blade speed: 440r/min,Motor speed:1250r/min
Air quantiy: 760m3/min, Noise:<65dB,Input power: 1.1Kw,
Voltage:380V,50Hz
Outside Shading System
Excess UV and sunlight will be blocked by the shade netting system
to prevent plants from sunburn in the greenhouse and to reduce
costs and regulate heat. The shade system can be installed inside
and outside the greenhouse with 55%, 65%, 75%, 80%, 85% and 99%
shade for external shade netting, secured by connectors and
external shade steel frame.
1. 1. External shade netting. UV protection, hail damage reduction,
automatic operation.
2. External shading frame: control the opening and closing of the
external shading system
The system applies evaporation theory.
When the pump pumps water to the cooling pad, the hot air outside
is pumped by the fan and passes the cooling pads at the same time;
the water vaporizes from the pads and cools down the temperature in
the greenhouse. The system consists of paper cooling pads, water
circulation system ,exhaust fan and aluminum framework.
The lower humidity weather is, the better the effect of the cooling
pads will be.

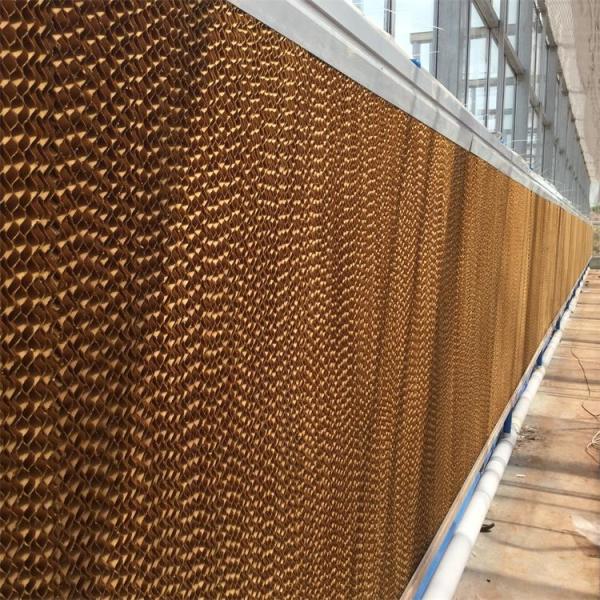

Wet pad was installed at one end of the greenhouse, the suction
ventilator installed in the other end. When the air in greenhouse
is needed to cool down, the control system of fan will start, the
indoor air is forced out and build-up the negative pressure; At the
same time, the water pump water the wet pad. The negative pressure
cause the indraft through the wet pad , leading to evaporation and
cooling, then the cold air flow through the greenhouse, absorb the
indoor heat, so as to achieve the purpose of the circulating
cooling.

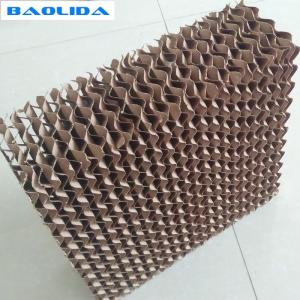

Cooling pad parameter
| H: high W: width D: depth H: wave height α: wave angle β: wave
angle |
| Item | 7090 | 7060 | 5090 |
| H (mm) | 1500 / 1800 / 2000 and so on | 1500 / 1800 / 2000 and so on | 1500 / 1800 / 2000 and so on |
| W (mm) | 600 / 300 | 600 / 300 | 300 / 600 and so on |
| D (mm) | 100 / 150 or as requirment | 100 / 150 or as requirment | 50 / 100 / 150 or as requirment |
| h (mm) | 7 | 7 | 5 |
| α (mm) | 45 | 15 | 45 |
| β (mm) | 45 | 4 | 45
|
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are
urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse
manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15 days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses
of steel, and different thicknesses of film. These will have a
direct impact on greenhouse prices. And the larger the area, the
lower the unit price will be
