3" 300# ASTM A182 GR. F304 ASME B16.5 SCH10S Flange Wn Rf

    Buy cheap 3

    Buy cheap 3
    • Buy cheap 3
    • Buy cheap 3
    • Buy cheap 3

    3" 300# ASTM A182 GR. F304 ASME B16.5 SCH10S Flange Wn Rf

    Ask Lasest Price
    Brand Name : Ze Xu
    Model Number : 1/2"-48”
    Certification : ISO9000
    Price : USD 10 per piece
    Payment Terms : T/T
    Supply Ability : 100,000 tons per month
    Delivery Time : 3-7 Working day
    • Product Details
    • Company Profile

    3" 300# ASTM A182 GR. F304 ASME B16.5 SCH10S Flange Wn Rf

    FLANGE 3" (WN)RF 300# ASTM A182 GR. F304 ASME B.16.5 SCH10S.
    Supply Ability
    Supply Ability
    3000 Ton/Tons per Year
    Packaging & Delivery
    Packaging Details
    below 24", will be packed by plywood case
    above 24", will be packed by plywood pallet
    Port
    tianjin
    Lead Time:
    Quantity(Pieces)1 - 1>1
    Est. Time(days)15To be negotiated
    Butt welding with neck (WN)
    Butt welding flange: neck flange welding is usually called "high hub" flange. The purpose is to transfer the pressure of the pipeline, thereby reducing the high stress concentration in the flange base. Neck flange welding is the best design for butt welding those flanges that are provided due to their inherent structural value. However, the price is relatively high because the production process of the product is complicated.

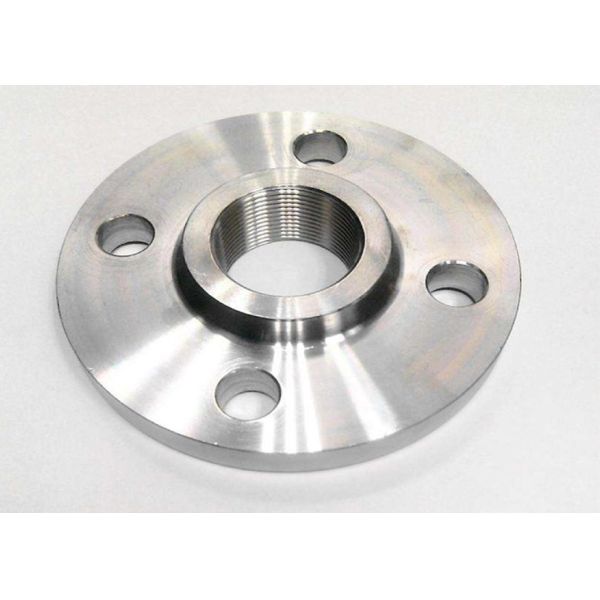

    Threaded (threaded) flange: The threaded flange is connected by threaded fasteners. But the center of the product has a thread size corresponding to the pipe. Its main advantage is that it can be assembled without welding.
    Sliding flange: The sliding flange has a lower hub because the pipe enters the single flange before welding. It is welded inside and outside to provide enough strength to prevent leakage. Sliding flanges are matched with boring pipes with slightly larger outer diameters. They are superior to the welding of neck flanges, because the initial cost is lower for many users, but the final installation cost is probably not low, because the number of welded neck flanges is less.
    Lap flange: The lap flange is actually exactly the same sliding flange, unless it is a radius between the hole and the flange race. It is necessary for the radius to have the flange to accommodate the end of the lap stub. Usually, the lap flange and the lap stub end mating together will assemble the system.
    The socket welding flange is a similar sliding flange, unless it has a hole and a counter hole size. The matching of the counter hole and the pipe allows the pipe to be inserted into a sliding flange similar to the flange. The diameter of the smaller hole is matched with the same pipe with the same ID. The restriction is a built-in hole that stays at the bottom as a shoulder sleeve designed for pipes. This eliminates any flow restrictions when using socket welding flanges.

    300# ASTM A182 GR. F304Flange

    Porduct Name

    weld neck flange, slip on flange, blind flange, tube sheet, threaded flange,

    socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange.

    (En1092-1 PN10 Pn16 DN900 DN750 Plate Steel Stainless Steel Flange)

    OD15mm-6000mm
    Pressure150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000
    StandardANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc.
    Wall thickness

    SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60,

    SCH80, SCH160, XXS and etc.

    Material

    Stainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S,

    A182F347H,A182F316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541,

    254Mo and etc.

    Carbon steel: A105, A350LF2, Q235, St37, St45.8, A42CP, E24 , A515 Gr60, A515 Gr 70

    Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 ,

    UNS32760, 1.4462,1.4410,1.4501 and etc.

    Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.

    Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,

    C22, C-276, Monel400, Alloy20 etc.

    Cr-Mo alloy: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc.

    Application

    Petrochemical industy;avation and aerospace industry;pharmaceutical industry;

    gas exhaust;power plant;ship buliding;water treament,etc.

    Advantagesready stock,faster delivery time;available in all sizes,customized;high quality
