Galvanized Steel 10ft Rigid Metal Conduit With Electroplated Couplings

    Buy cheap Galvanized Steel 10ft Rigid Metal Conduit With Electroplated Couplings from wholesalers

    Buy cheap Galvanized Steel 10ft Rigid Metal Conduit With Electroplated Couplings from wholesalers
    • Buy cheap Galvanized Steel 10ft Rigid Metal Conduit With Electroplated Couplings from wholesalers
    • Buy cheap Galvanized Steel 10ft Rigid Metal Conduit With Electroplated Couplings from wholesalers
    • Buy cheap Galvanized Steel 10ft Rigid Metal Conduit With Electroplated Couplings from wholesalers

    Galvanized Steel 10ft Rigid Metal Conduit With Electroplated Couplings

    Ask Lasest Price
    Brand Name : TOPELE
    Model Number : IMC CONDUIT
    Certification : ISO CERTIFICATE
    Price : negotiable
    Payment Terms : TT/LC AT SIGHT
    Supply Ability : 200 tons one month
    Delivery Time : 20 days for one 20ft container
    • Product Details
    • Company Profile

    Galvanized Steel 10ft Rigid Metal Conduit With Electroplated Couplings

    Galvanized Steel Rigid Conduit Metal Conduit with Threaded Coupling


    Description:

    ANSI C80.6 Electrical Pre-galvanized /Hot-dipped Galvanized IMC Conduit Pipe

    with a integral coupling and a protection cap

    • IMC conduit is a metal thin walled conduit , Threading on both ends. Couplings and connectors can be added to connect the next piece.
    • TOPELE BRAND IMC CONDUIT Protect insulated electrical conductors and cables
    • Galvanized steel construction provides shielding from magnetic fields and protection from impact damage and crushing
    • Electroplated couplings prevent zinc build-up
    • Designed for use with threaded connections
    • Meets CSA

    Applications:


    TOPELE IMC CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This IMC CONDUIT is made of Pre-galvanized steel and has an organic coating inside.

    IMC Conduit provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist buildup of zinc on the threads.

    Used as a threadable steel raceway for protection and routing of electrical wiring.


    Specifications:


    Material: B235/G60
    Standard: UL1242 /ANSI C80.6
    Finish: Pre-galvanized
    Size: 1/2", 3/4", 1", 1-1/4" ,1-1/2", 2", 2-1/2", 3",3-1/2" 4"
    Outside diameter: 113.3mm
    Wall thickness: 3.56mm
    Norinal weight :29.41KG/PC
    Length: 3.05m
    Pieces/bundle: woven bag with steel strap.


    nominal diameter

    external diameter

    thickness of wall

    length

    packing

    weight/unit(kg)

    Threads Inch

    IMC CONDUIT (INTERMEDIATE METAL CONDUIT)

    1/2"

    20.7mm

    1.98mm

    3.05

    15pcs/bundle

    2.79

    14

    3/4"

    11-1/2"26.1mm

    2.1mm

    3.05

    10pcs/bundle

    3.82

    14

    1"

    32.8mm

    2.35mm

    3.05

    8pcs/bundle

    5.38

    11-1/2

    1-1/4"

    41.6mm

    2.42mm

    3.05

    5pcs/bundle

    7.13

    11-1/2

    1-1/2"

    47.8mm

    2.54mm

    3.05

    5pcs/bundle

    8.64

    11-1/2

    2"

    59.9mm

    2.67mm

    3.05

    4pcs/bundle

    11.50

    11-1/2

    2-1/2"

    72.6mm

    3.81mm

    3.05

    1pcs/bundle

    19.10

    8

    3"

    88.3mm

    3.81mm

    3.05

    1pc

    23.45

    8

    3-1/2"

    100.9mm

    3.81mm

    3.05

    1pc

    26.95

    8

    4"

    113.4mm

    3.81mm

    3.05

    1pc

    30.42

    8

    nominal diameter

    external diameter

    thickness of wall

    length

    packing

    weight/unit(kg)

    Threads Inch

    IMC thin conduit (INTERMEDIATE METAL CONDUIT)

    1/2"

    20.7mm

    1.78mm

    3.05

    15pcs/bundle

    2.53

    14

    3/4"

    26.1mm

    1.91mm

    3.05

    10pcs/bundle

    3.50

    14

    1"

    32.8mm

    2.16mm

    3.05

    8pcs/bundle

    4.97

    11-1/2

    1-1/4"

    41.6mm

    2.16mm

    3.05

    5pcs/bundle

    6.41

    11-1/2

    1-1/2"

    47.8mm

    2.29mm

    3.05

    5pcs/bundle

    7.84

    11-1/2

    2"

    59.9mm

    2.41mm

    3.05

    4pcs/bundle

    10.43

    11-1/2

    Competitive Advantage:

    Pre-galvanized imc conduit/galvanized imc conduit /imc steel pipe
    1. OD:1/2" to 4" bigger than 2 inch is hot dip galvanized
    2. WT:1.60mmmm-10mm
    3. Standard:US STANDARD
    4. Payment:T/T or L/C

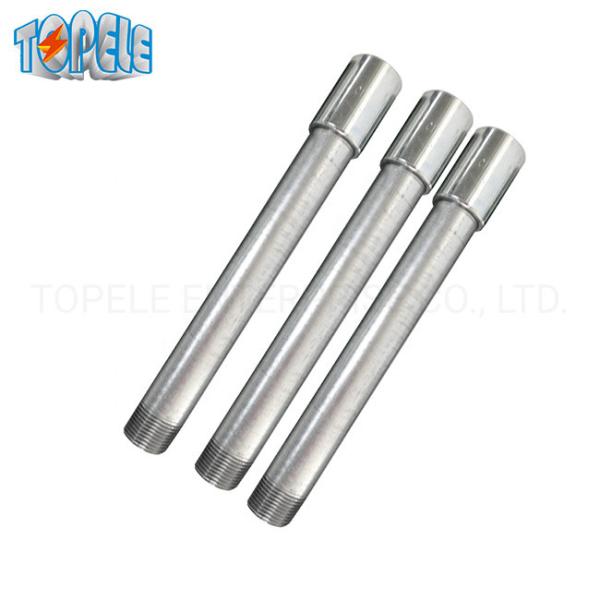

    Quality Galvanized Steel 10ft Rigid Metal Conduit With Electroplated Couplings for sale
