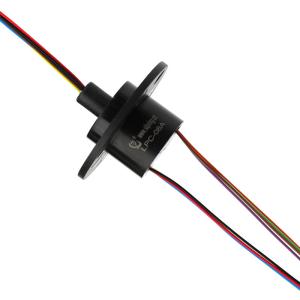

Micro Slip Ring 300rpm 8 Circuits 2A With Flange

Radar Antenna Micro Slip Ring Capsule 300rpm 8 Circuits 2A With Flange Professional solution​

Description

The LPC-08A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connection. It provides smoother running, lower torque and lower electrical noise than competitive slip rings.

The slip ring is made of brushes, conductive rings, insulation materials, binding materials, a supporting frame, precision bearings and housing etc. The brushes which are made of precious metal are in two-point contact to the ring.The LPC-08A used in any electromechanical system that requires unrestrained, continuous rotation while transmitting power and /or data from a stationary to a rotating structure.

Outline Drawing

Application picture

JINPAT Electronics, founded in 1996, is a national high-tech enterprise specializing in R&D, manufacturing and sales of high-precision slip rings. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring.

Besides, customization is supported to cater to the different application in that slip ring can be designed exclusively integrated with Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth.
