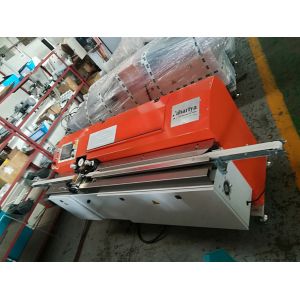

    Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine

    Ask Lasest Price
    Brand Name : Jinan Lijiang Glass Machinery
    Model Number : LJTB01 Butyl Extruder Machine
    Certification : CE & ISO9000
    Price : Discussible
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine

    Support Customization Automatic Insulated Glass Aluminum frame without pressure relief Butyl Extruder Machine on Sale
    The Application of LJTB01 Butyl Extruder Machine

    1. Touch-screen operation, simple and practical

    2. Auto-measure the width of spacer, nozzle automatic positioning

    3. Auto-centering and auto-clamping

    4. The bigger wheel help to coat the arc frame

    5. Coating nuzzle is Teflon brand ,non-stick coating

    6. The coating speed is up to 47m/min,saving materials up to 30％,( 5g/m)


    7. The crossbeam height is easy to adjust,we can control the height of butyl

    8. The special part controls both sides of nozzle opening and closing at the same time

    9. Alarm device when use out of butyl and easy to load butyl

    10. Pre-heading function,set a regular time before working time

    11. Glue cylinder Adopt the upright structure, easy to change butyl.

    12. Automatic filter function Automatically filter debris, keep spreading evenly.


    13. Hydralic and Pneumatic supercharging pump ,German MAXIMATOR brand

    14. Pressure release valve German HAWE brand ,high pressure resistance ,keep the butyl well proportioned

    15. Pneumatic component Taiwan Airtac

    16. Japan OMROM Relay

    Advantages & Features

    The rubber head
    The rubber head is a floating soft connection, vertical movemnet, automatic guiding, uniform force around the rubber cylinder and the pistion, and overcomes the defects of easy wear of the bottom of the horizontal rubber cylinder.

    The Germany Siemens PLC system
    The whole machine adopts the Germany Siemens PLC system, handle-machine interface operation, automatic and accurate glue application and multi-speed section adjustment, high production efficiency.

    The stainless steel work surface
    It is made of stainless steel work surface and equipped with positioning device. And it is suitable for profiled, rectangular and round aluminum frames of various specification.

    Could produce the special sharps
    It can be folded into triangles, rectangular shape, positive five-square shapes, regula hexagonal shapes, and arc shapes.

    The hydraulic system
    The whole machine is divided into hydraulic system and gas-liquid system boosting work, ensure that the glue is extruded evenly and the glue is stable during the extrusion processing.

    The large hydraulic station struction
    The large hydraulic station struction uses Japanese brand research technology, and components to provide stable pressure.
    Main Technical Parameter
    Item.
    Spec.
    Coating speed
    5-47m/min
    Aluminum spacer size
    4-30mm
    Supply sealant pressure
    <100kg/cm2
    Power
    5KW
    Air source
    ≥0.6MPa
    Dimension
    2600mm*680mm*1100mm
    volume of butyl approx.
    7.5L
    Name
    Brand
    Low voltage electrical apparatus
    Germany SIEMENS
    Hydraulic and pneumatic supercharging system
    Germany MAXIMATOR
    Pressure relief valve
    Germany HAWE
    Frequency converter
    KINCO
    PLC
    KINCO
    Pneumatic components(cylinder,valve)
    ARTAC
    Quick exhaust valve,Vacuum generator
    Japan SMC
    travel light
    Japan OMRON

    Desiccant Filling Machine

    • Rectangle can be filled.
    • Arc frame can be filled (OPTIONAL FUNCTION)
    • Germany Siemens PLC control system
    • Auto drilling, filling and sealing , easy and simple operation.
    • The mechanical height & Filling time can be adjusted according to the spacer frame size
    • Molecular automatically loading and replenish .
    • Easy and safe for adding glue.
    • Protection device for machine head
    • Touching screen interface, simple and visible
    • All spare parts & electrical wires have ID Number for offering the convenience in after sales service

    OPTIONAL FUNCTION

    • Big bucket desiccant 200L,save desiccant refill time ,improve the work efficiency
    • Adopt vacuum pump loading device ,increase the loading speed
    NameBrand
    PLCGerman SIEMENS
    Low voltage electrical apparatusGerman SIEMENS
    SensorKorea AUTONICS
    TripletTAIWAN AIRTAC
    Solenoid valveTAIWAN AIRTAC
    Gas drillerTaiwan BOA
    Switch powerTaiwan TEND
    GuideTaiwan TBI

    Main technical parameter


    Filling aluminum frame’s maximum size2500mm*2500mm
    Filling aluminum frame’s minimal size300mm*250mm
    Article aluminum specifications5.5-24mm
    Air source≥0.65MPa
    Power supply and power consumptionAC220V 50Hz 1.8KW
    Molecular sieve diameter needed0.5-0.9mm
    Dimension1300mm*1100mm*3650mm

    Aluminum Spacer bending machine



    l 1*1m spacer frame was bend around 17s.

    The error of spacer frame angle is within 0.1mm.


    l Can bend aluminum spacer /technoform /Alupro /thermix/

    l Spacer automatically connect and cut.

    l Machine automatically stop when the spacer use up.

    l Support continuous bending , automatically avoid spacer connection while bending and cutting

    l Automatically connect the spacer -connector


    l Remote control function

    l USB input function ,it can read the excel data directly

    l Spare parts of all machine have ID code ,convenient for after-sale service


    l Heavy duty connectors ,convenience and safety for installation and debugging

    l Magnetic valve use Taiwan Airtac

    l German Siemens plc control systerm

    l Japan Fuji servo control system


    l 12 storage spacer units (option)

    l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)

    (Stainless steel and warm edge spacer can not exist at one time )

    l Drill hole for gas filling(option)

    l Spacer inkjet printing ,various color is available for company logo or production date(option)

    l Laber printing (option)

    l Scanner scan two-dimension code ,bar code (option)

    l Separate Pressing Wheel for arc frame, more accurate than the bending tool

    Especially for Hexagon and Octagon frame (optional )

    l ERP (optional)


    Main technical parameter

    Max.bending size2000*2000mm
    Min.bending size250*200mm
    Aluminum spacer width6-27A
    Arc Radius60°-150°
    6A-16A
    Dimensional error:≤±0.5mm
    Angle error≤±1º
    1m*1m aluminum spacer17s
    Air supply≥0.65MPa
    Total powerAC220/380V 50Hz 2.5KW
    Dimension10500mm*2200mm*2600mm

    Spacer Bending machine main components

    NAMEBRAND
    PLCGERMAN SIEMENS
    Low voltage electrical apparatusGERMAN SIEMENS
    Servo motorGERMAN SIEMENS
    Servo driverGERMAN SIEMENS
    RelayJAPAN OMRON
    TripletTaiwan AIRTAC
    CylinderTaiwan AIRTAC
