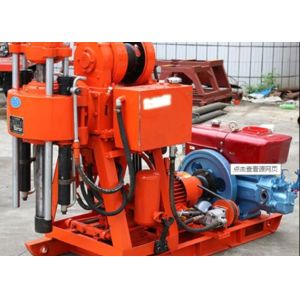

    150 Meters Diesel Engine XY-1A Geological Drilling Rig Machine Customized Hole Diameter

    Ask Lasest Price
    Brand Name : JINZHOU SHITAN
    Model Number : XY-1A
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 5000 sets per year
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    150 Meters Diesel Engine XY-1A Geological Drilling Rig Machine Customized Hole Diameter

    XY-1A Geological Drilling Rigs Machine


    XY-1A Geological Drilling Rigs Machine Introduction


    It is mainly used in the exploration of solid mineral deposits and geological survey of engineering, and the inspection holes of various concrete structures.It is a hydraulic feed portable drilling rig, which is suitable for engineering geological exploration of industrial and civil buildings, railways, hydropower, transportation, bridges, dam foundations and other buildings.It is a portable and multi-purpose drilling rig for engineering investigationIt is mainly used for the general survey and engineering geological investigation of solid deposits, and various inspection holes of concrete structures. Diamond alloy and steel grain bits can be selected for drilling according to different strata.This machine is also designed for geotechnical drilling operations, making it perfect for drilling in difficult terrains. It is also a great choice for mining exploration operations, providing excellent performance and reliability


    XY-1A Geological Drilling Rigs Machine Technical Detail


    Drilling diameter(mm)75,91,110,130,150,300
    Drilling depth (m)150,100,70,50,30
    Drill pipe diameter (mm)42,43
    Drilling angle(°)90~75
    Equipment size(L * B * H)1700 * 780 * 1274 (mm)
    Rig weight (except engine)540
    Gyrator
    Spindle speed (four gear) (r/min)140,295,470,790,1010
    Spindle travel(mm)450
    Spindle no-load lifting maximum moving speed(m/s)0.05
    Spindle no load drop maximum movement speed(m/s)0.067
    Spindle maximum feed pressure(KN)15
    Spindle maximum lifting force(KN)25
    Spindle maximum output torque(KN• m)0.5
    Winch assembly
    Winch maximum lifting force (single rope)(KN)11
    Reel speed (r/min)36,76,121
    Reel circumferential speed(m/s)0.31,0.66 ,1.05
    Reel diameter(mm)140
    Wire rope diameter(mm)9.3
    Wire rope density (m)35
    Brake diameter(mm)252
    Brake band width (mm)50


    XY-1A Geological Drilling Rigs Machine Advantage:


    1. five gears, and the highest speed can reach 1045r/min, improving drill efficiency

    2. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

    3. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.

    4. for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

    5. Vertical spidle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.


    XY-1A Geological Drilling Rigs Machine Rotary Drive Process:


    The diesel engine drives the triangle pulley on the worm to rotate through the worm of the coupling reducer. Through the V-belt, drive the empty sleeve in the unloading bracket of the gearbox. The V-belt pulley is connected by the clutch, and the power is transmitted to the gearbox. After the gearbox changes speed, the gears mesh with the rotary gear shaft to drive the small bevel gear, the large bevel gear and the vertical shaft to rotate. If the clutch is disconnected, the rotator stops.

    Hoist drive:The motion of the winch is transmitted from the gearbox. The gear of the gearbox is meshed with the gear, and its three speeds can be transmitted to the transmission gear of the winch, so as to drive the shaft of the winch to rotate. The winch can be lifted by the action of planetary gear mechanism and holding brake
