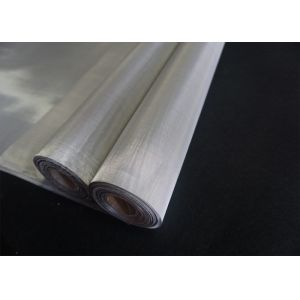

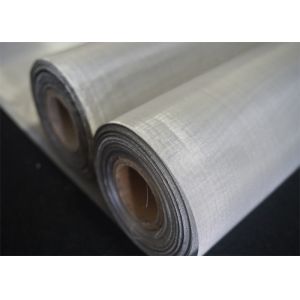

High filtration accuracy 60*300 50*600 80*680 stainless seel dutch
mesh
Product Description
It is woven from high-quality stainless steel wire. The main
feature is that there is a large contrast between the warp and weft
wire diameters and densities, so the mesh thickness, filtration
accuracy and service life are significantly improved compared to
square mesh, and its filtration accuracy cannot be achieved with
square mesh.
Weaving form: plain weave stacked damask weave, twill weave stacked
damask weave, reverse stacked damask weave.
Material: copper wire, nickel wire, stainless steel wire
Performance: It has the characteristics of stable and fine
filtering performance.
Uses: used in aerospace, petroleum, chemical and other industries.
The factory can design and produce various types of products
according to user needs, and undertake processing of incoming
materials.
Features and Applications
► Easy to use and convenient for long-distance transportation;
► The net surface is flat, the mesh is uniform, the welding point
is firm, and the local machining performance is good;
► Good anti-corrosion, with strong anti-corrosion and
anti-oxidation performance
► Used for precision pressure filter, fuel filter, vacuum filter
►Suitable for aerospace, petroleum, chemical, chemical fiber,
rubber, tire manufacturing, metallurgy, medicine, food and other
industries.
►The product is mainly used for gas and liquid filtration and other
media separation.
Specification
| Mesh | Warp*weft(mm) | Aperture(um) | Thicknees(mm) |
| 20*270 | 0.25*0.2 | 119 | 0.65 |
| 40*540 | 0.18*0.10 | 70 | 0.38 |
| 70*600 | 0.14*0.09 | 31 | 0.32 |
| 80*680 | 0.112*0.08 | 28 | 0.272 |
| 150*1400 | 0.063*0.036 | 15 | 0.143 |
| 200*1600 | 0.05*0.032 | 10 | 0.114 |
| 300*2100 | 0.036*0.025 | 6 | 0.086 |
