    Anti Corrosion 4x8ft Honeycomb Aluminium Panel For Curtain Wall

    Ask Lasest Price
    Brand Name : Huabond
    Model Number : H-H118
    Certification : ASTM, ISO9001, SGS, CE
    Payment Terms : T/T, L/C
    Delivery Time : 18-22 days
    • Product Details
    • Company Profile

    Anti Corrosion 4x8ft Honeycomb Aluminium Panel For Curtain Wall

    Honeycomb wall board
    Basic Info.

    Trademark: Huabond
    Model NO.: H-H118
    Cell Size: 1~30mm
    Core Height: 2-100mm
    Specification: 1220*2440
    Size: Customized
    Transport Package: Plywood Box
    HS Code: 7616 9990
    Origin: Hunan, China
    Product Description
    Aluminum honeycomb core, a structural material, offering high strength to weight ratio and corrosion resistance, is widely used in a range of industrial applications, including architectural curtain wall, cleaning room, aerospace, marine, defence, rail and automotive industries, aluminum honeycomb core, just to name a few. When a light weight but high strength material is needed, the honeycomb core material may be a better choice.

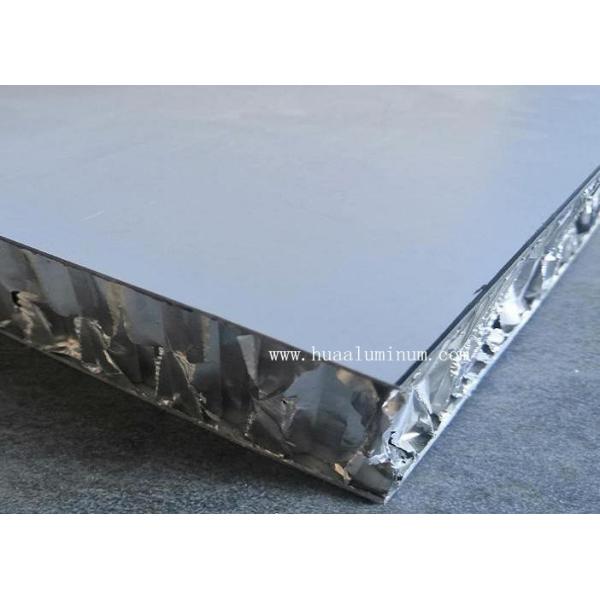

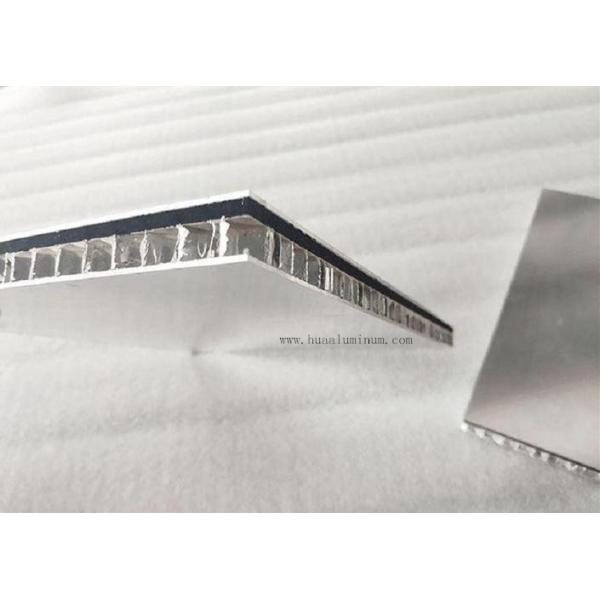

    Aluminum honeycomb panel is sandwich panel bonded with aluminium face material and with a core in aluminium honeycomb. It offers high mechanical properties and good fire performances. The aluminum face material can be pre-painted in different RAL colors. The aluminium faces (skins) are available in different thicknesses and coatings, anodized or with primer.
    The aluminum skin we use are 3003 or 5052 alloy according to customer's different applications.
    Main Features
    Excellent strength-to-weight ratio
    Lightweight & Energy-Absorption
    Fireproof & Waterproof
    Heat & Sound Insulation
    Excellent Moisture & Corrosion Resistance
    Excellent crush strength and stiffness
    Super Flatness and Rigidity
    Environmental-Friendly




    Specification

    Typehoneycomb wall panels
    Side length0.5mm0.6mm0.8mm1mm1.5mm1.83mm2mm2.5mm3mm
    Cell size1/30inch 0.87mm1/25inch 1.04mm1/18inch 1.38mm

    1/15 inch
    1.73mm

    1/10 inch
    2.6mm

    1/8 inch
    3.17mm

    1/8 inch
    3.47mm

    1/6 inch
    4.33mm

    1/5 inch
    5.2mm

    Max expanded dimension (mm)300*300500*5001000*10001200*12001500*15001500*15002000*16002000*1700
    Foil type & thickness(mm)3003H18 0.025 0.033003H18 0.043003H18 0.04 0.05 0.06 5052H18 0.06 0.083003H18 0.04 0.05 0.06 0.07 0.10 5052H18 0.06 0.08




    Characteristics
    Light weight, high strength, good rigidity and tear resistance.
    High-temperature resistance, corrosion and aging resistance.
    Flame-retardant.
    Superior flatness.
    Sound and thermal insulation.
    Easy installation.
    Environment protection.

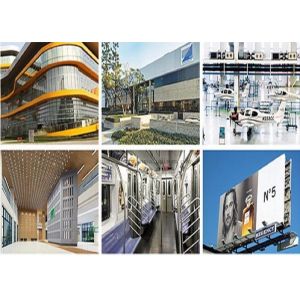

    Application
    Building & Construction.
    Cleanroom partition and ceiling.
    Railway transportation.
    Marine partition and furniture.
    Aerospace and military.
    Louver/ traffic lights.
    Laser cutting machine.
    Air filter.
    EMI shielding.
