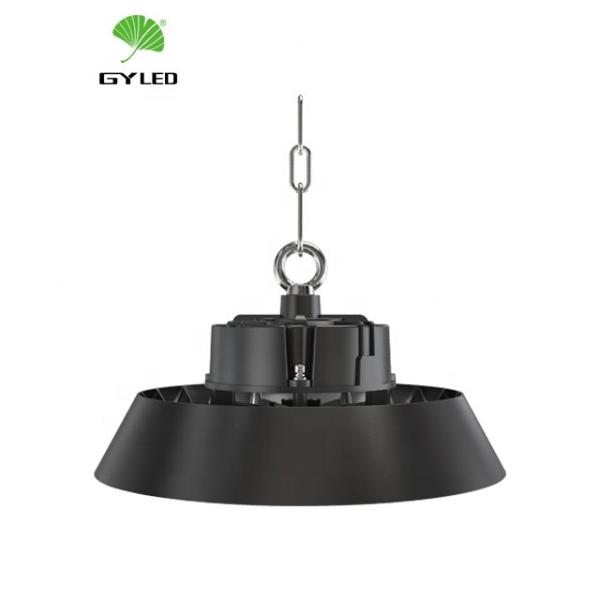

GY280GKII Series LED High Bay Light
| Model No.: | GY280GKII | GY320GKII | GY350GKII |
| Power Watt(W): | 80/100w | 120/150w | 200/240w |
| Input Voltage(V): | AC85～265V |
| Lighting Efficiency(lm/W): | 140/170lm/w |
| Power Factor: | ≥0.95 |
| CRI: | Ra＞70 |
| Color Temperature(K): | 3000/4000/5000/6500 |
| Protection Grade: | IP65/IK08 |
| Beam Angles | 60°/90°/120° |
| Ambient Temperature(℃): | -30～45 |
Working environment humidity | 15%～90% RH |
| Net Weight(Kg) | 1.9 | 2.35 | 3.0 |
| Body Dimensions(mm) | Φ280×H164 | Φ320×H164 | Φ350×H164 |
Carton Size(mm) 1pc/Ctn | 330*330*180 | 370*370*180 | 400*400*180 |
| Gross Weight (Kg) | 2.7 | 3.2 | 4.0 |
| Optional Function | Motion Sensor (extra cost) |
Application:
1. Factory buildings,
2. Warehouses
3. Workshops
4. Gymnasiums and other places
Features:
PC lens, Optical design, Anti-glare treatment.
High efficiency and Energy saving
Applies a specially designed reflector that can be installed inside
the light fixture to realize the different beam angles for the
light and to achieve the various lighting distribution solutions of
the luminaire.
LED UFO Highbay is widely used in Warehouses, libraries, workshops,
shopping malls, supermarkets, shops, restaurants, sports centers,
cinemas, hospitals, clothing stores, bars, and other indoor
lighting places.
Lighting solutions service: Lighting and circuitry design, DIALux
Evo layout, LitePro DLX layout
Anti-glaring light is required more and more for applications where
people don't feel comfortable with the glaring light, especially in
the stadium.
CE&RoHS Certificates.
5 years warranty
Installation Method:
Open the packing box, take out the lamp, check whether the lamp is
in good condition and whether all the accessories of the lamp are
complete;
Fix installation of high bay light through lifting rings and
brackets;
Connect the lead cable of the lamp to the external power cable, and
the lamp can be used normally after the power is turned on.
