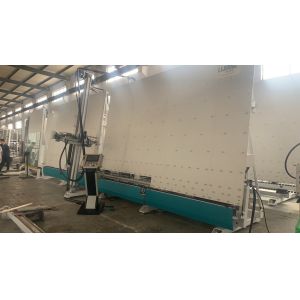

Automatic Silicone Sealant Spreading Machine With Two Pumps

Automatic Two Pumps Sealants Sealing Robot For Double Glass Coating Machine

Sealing machine : Automatic sealing robot / Manual sealants spreading machine with two pumps for silicone sealants, polysulfide sealnats, silicone structure sealants, Polyurethane sealants.

Optional functions and specifications:

1. 2000mm*2500mm / 2500mm*3500mm / 2500mm*4000mm (Large size can be customerized)

2. Triple glass

3. Step glass ( 3 or 4 sided step glass )

4. Shaped glass

5. Two sets of sealing pumps with dual gluing head

6. Colors can be changed

7. Machine length can be changed

8. With code scanning function

Main features of the sealing machine:

Single / double glue supply system can be selected. The single glue supply system is equipped with one set of A pump and B pump, which is suitable for a kind of sealant. Double glue supply system is suitable for two different kinds of sealant. Polysulfide, silicone, silicone structural and polyurethane sealants are all suitable for this machine.

• Japan Yaskawa servo system control, 8 sets of servo control system, full automatic and high-efficiency sealing machine

• 4 sections, can storage glass

• Adopt timing belt, smooth transfer and accurate position

• Automatically repair glass corners with scraper and roller

• Automatically measure glass size, glue depth (30mm)

• Every auto-function is with manual operation

• Can use silicone, polysulfide and silicone structural sealants

• Glue head is in the front of the machine, which is easy for coating step glass

• Can be connected with insulating glass processing line

The glue head can ne in front of the machine, which is easy to seal step glass and connest with IG line

Company introduce:

LIJIANHG‘s R&D engineers are with 10 to 20 years of working experience, R&D engineers of LIJIANG have very strict requirements on insulating glass equipment and pursue to make glass processing more simple and intelligent.

LIJIANG GLASS's products mainly include: IG line series; Automatic sealing robot series; Low-e film edge deletion machine; Spacer bending machine series; Butyl extruder machine series; Desiccant filling machine and other auxiliary insulating glass machines. About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.

In 2016, we won the title of Jinan Golden Seed Enterprise and government subsidy by virtue of the first fully automatic butyl extruder machine with six axis independently developed.

In 2018, we won the title of national high-tech enterprise. During this period, we cooperated with many famous universities and the 53 Research Institute of the Ministry of ordnance industry to develop high-tech products.

JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD

Address: Block B 1307, Green Square, Huaiyin District, Jinan, China

Tell : 0086 0531-85960498 Fax : 0086 0531-87562846

Salesperson: Hermione (+86 18353163989 / +86 13001733235)

Email: sales01@lijiang-glass.com

Website : www.lijiang-glass.com / www.insulatingglassproductionline.com

Automatic Stainless Steel Bar Bending Machine For Glass Windows

Double glass machines or glass windows and doors machines :

Automatic spacer bending machine : alumimum spacer bending machine / warm-edge spacer bending machine / stainless steel bending machine / manual spacer cutting machine

Optional functions :

• Connect to ERP system (Optional)

• USB input function, read the excel format file directly

(2 or 12 groups of storages can be optional)

• Automatically drill holes for filling argon gas (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)

Main features :

• Siemens 1200 PLC control system with fast working speed

• 4 groups of storages

• Automatically cut and feed aluminum spacers

• Automatically avoid the pins while bending and cutting

• Bend spacer frames continuously

• Aluminum spacers are available in sizes of 6A-27A

• Different bending tools for different sizes of spacers

• Pause and Reset device for handling equipment failures

• Bend aluminum spacer, smooth stainless steel, warm spacer

Company introduce:

LIJIANHG‘s R&D engineers are with 10 to 20 years of working experience, R&D engineers of LIJIANG have very strict requirements on insulating glass equipment and pursue to make glass processing more simple and intelligent.

Affter sale service:

a.Warranty: One year( The wearing parts and grinding tools are out of this range) guarantee the perfect working condition by normally replacing for wearing parts, electric parts and some other parts under the proper operation.

b.LIJIANG has its own after service system. And it can be divided into 3 situations.
① After the machine arriving customer’s factory,LIJIANG can send its engineer to the customers’ factory for machine installation, adjustment and personnel training for free.But the round-trip air ticket, and accommodation will be born by the customer.
② During the warranty period (one year), if there is problems with the equipment and the customer requests the LIJIANG engineer to repair in the factory. The customer is responsible for the round-trip air ticket , no maintenance fee and no spare parts cost (except wearing parts).
③ Outside the warranty (one year), if the equipment appears problems, the customer request LIJIANG to send engineers to the factory for maintenance.The customer should be responsible for round-trip air tickets and accommodation.Also customers need to pay for the LIJIANG daily $150 as service and maintance costs, and all parts must be completed paid before the delivery.
