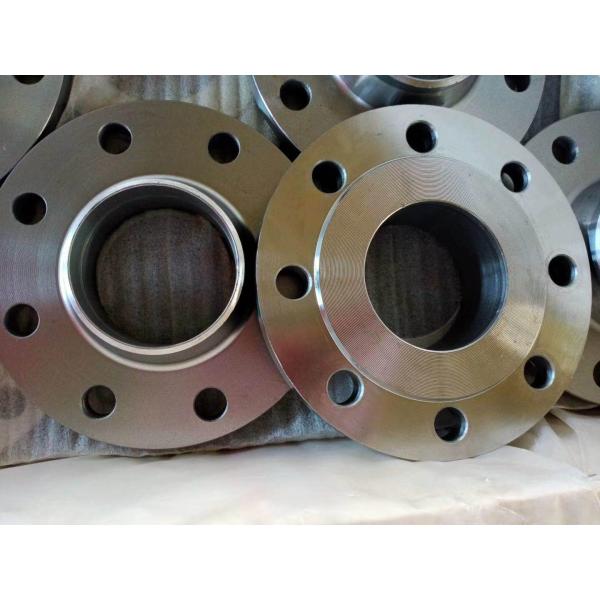

    PED ADW2000 12820 12821 33259 GOST Flange ASTM A182 A240 310 321 317 347 904L

    Ask Lasest Price
    Brand Name : XF
    Model Number : 1/2"-48"
    Certification : ISO,PED,,ADW2000
    Price : NEGOCIATION
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 10000TONS PER MONTH
    Delivery Time : 30DAYS
    • Product Details
    • Company Profile

    PED ADW2000 12820 12821 33259 GOST Flange ASTM A182 A240 310 321 317 347 904L

    GOST STANDARD FLANGE (GOST 12820/GOST 12821/GOST 33259) – MANUFACTURERS & STOCKISTS

    GOST Standard Flanges

    Check GOST Flanges Dimensions, GOST 12821 80 flange Manufacturer

    GOST Standard Flanges abide by the standard called GOST. It is a Russian standard that adapts to the standards of European, Asian standards and many other national standards. Dinesh Industries is a producer of different flanges in different material grades that come with the GOST standard. The Gost Standard Flange Dimensions vary with specification and other standards. There are small to medium scale diameter flanges that operate in different applications. The Gost 12821 Flange is a stainless steel flange that can range between the DIN15 to DIN1600. There are different types of the flanges as well. The GOST 12821 80 flange is used in oil fields, offshore oil industries, natural gas industries and in water systems.

    GOST Standard Flanges

    View GOST 12821 Stainless Steel Flanges Pressure Chart & GOST 12821-80 Flanges Weight

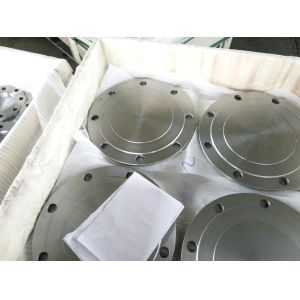

    The electric power plants and shipbuilding industries use this standard of flanges as well. There are different types such as the weld neck, slip on, butt weld and blind flanges. The Ghost Blind Flange is used to terminate a pipe line either temporarily or permanently. The Ghost Weld Neck Flange is used to have more welding surface and strength over connection. The Ghost Plate Flange is used to add more connection surface to blunt pipe ends and the Ghost Slip On Flange is useful when connecting seamless pipes together. You can get any types of flanges from us and please feel free to contact us with your inquiry.

    Specification List of GOST Standard Flanges

    Producty Type GOST Flanges
    Size ½” to 48″
    Pressure Class Ratings Class 1500, Class 150, Class 400, Class 900, Class 300, Class 2500, Class 600 | PN16, PN40, PN6, PN10, PN64, PN25
    Specialize As per drawing
    Standard ANSI B16.47, MSS SP44, ANSI B16.5, ANSI B16.36, ANSI B16.48 ,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820DIN : DIN2527, DIN2633, DIN2636, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2637, DIN2638, DIN2656, DIN2627,
    DIN2628, DIN2629, DIN 2631, DIN2634, DIN2635, DIN2632, DIN2673B.S : BS1560, BS4504, BS4504 , BS10
    Connection Type / Flange Face Type Flat Face, Large Male-Female, Ring Type Joint, Lap-Joint Face, Large Tongue & Groove, Raised Face, Small Male-Female, Small Tongue & Groove

    GOST Standard Flanges are Available in Class 150 to Class 2500, in Dimensions like ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, AWWA

    Dimensions Format of GOST 12821-80 Flanges

    GOST 12821-80 Flanges

    Проход условный Dy d1 b h4 Dm Dn Масса, кг
    с соединительным выступом с выступом с впадиной с шипом с пазом
    10 8 10 27 22 15 0,34 0,34 0,32 0,34 0,33
    15 12 28 28 19 0,40 0,40 0,38 0,40 0,40
    20 18 30 36 26 0,53 0,53 0,50 0,53 0,52
    25 25 12 42 33 0,76 0,77 0,72 0,75 0,75
    32 31 33 50 39 1,10 1,08 1,04 1,08 1,08
    40 38 35 60 46 1,36 1,37 1,28 1,30 1,34
    50 49 70 58 1,53 1,51 1,44 1,46 1,47
    65 66 88 77 1,97 2,06 1,83 1,72 1,75
    80 78 13 37 102 90 2,76 2,76 2,80 2,65 2,72
    100 96 38 122 110 3,35 3,04 3,03 3,03 3,04
    125 121 15 40 148 135 4,66 4,24 3,66 4,50 4,55
    150 146 43 172 161 5,37 5,85 4,93 5,29 5,35
    (175) 177 17 47 210 196 7,32 8,10 6,92 7,11 7,16
    200 202 50 235 222 8,37 9,35 7,75 7,98 8,05
    (225) 226 260 248 9,45 9,25 8,72 8,98 9,06
    250 254 18 288 278 10,99 10,69 10,14 12,20 12,30
    300 303 340 330 14,82 14,28 14,10 13,81 14,11
    350 351 390 382 17,69 18,65 17,64 16,35 16,72
    400 398 440 432 20,55 19,69 19,30 18,83 19,31
    (450) 450 494 484 23,63 23,60 21,90 21,62 22,24
    500 501 19 545 535 26,63 29,10 25,90 24,44 25,10
    600 602 55 650 636 35,79 35,60 33,40 37,49 33,67
    (700) 692 740 726 44,31 44,10 41,10 40,60 41,86
    800 792 60 844 826 56,17 55,20 52,20 51,67 53,36
    (900) 892 21 944 926 66,79
    1000 992 1044 1028 73,51
    1200 1192 23 70 1248 1228 111,43
    1400 1392 27 85 1456 1428 156,58
    1600 1592 32 95 1660 1628 218,57

    Weight Chart of GOST 12820 Flanges

    Standard
    Class
    Diameter
    Bolt Circle Diameter
    Number of Bolts
    Bolt Size
    Diameter of Bolt Hole
    AS4087 Flanges
    PN14
    95
    67
    4
    M12
    14
    AS 2129 Flange
    Table C
    95
    67
    4
    13
    14
    Table D
    95
    67
    4
    13
    14
    Table E
    95
    67
    4
    13
    14
    Table F
    95
    67
    4
    13
    14
    Table H
    114
    83
    4
    16
    17
    Table J
    114
    83
    4
    16
    17
    ANSI B16.5 Flanges
    ANSI 150
    89
    60
    4
    13
    16
    ANSI 300
    95
    67
    4
    13
    16
    ANSI 600
    95
    67
    4
    13
    16
    ANSI 900
    121
    83
    4
    19
    22
    ANSI 1500
    121
    83
    4
    19
    22
    ISO 7005 (DIN) Flange
    PN6
    80
    55
    4
    M10
    11
    PN10
    95
    65
    4
    M12
    14
    PN16
    95
    65
    4
    M12
    14
    PN20
    90
    60.5
    4
    M14
    16
    PN25
    95
    65
    4
    M12
    14
    PN40
    95
    65
    4
    M12
    14
