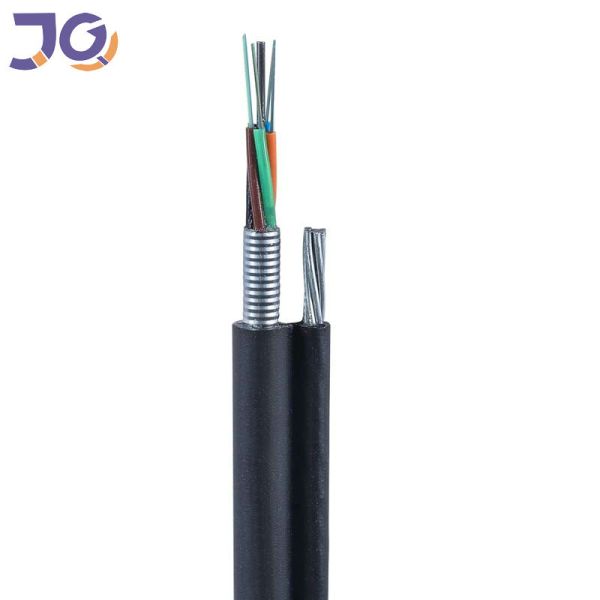

Communication cables Figure 8 GYTC8S Self-Supporting for aerial
Fig.8 GYTC8S Communication Cables For Aerail
Product Characteristic:
1. The messenger wire together with OFC as a whole part. OFC
installation can be completed at one time. Ease construction and
less affected by environment, reducing installation cost.
2. It adopts stranded galvanize steel wire with high tensile
strength, which can meet the requirement of existing telephone
pole.
3. The reasonable structure design and precision control for over
length ensure OFC with excellent performances of mechanical tensile
strain and environment temperature.
4. The close structure of SZ layer stranding preventing optical
fiber from stress under bad environment.
5. It could ensure moisture and water resistant performance of OFC
with filling compound filled outside strength member and inside
cable core.
It could ensure much better moisture resistance and improve side
press resistance perform with longitudinal steel plastic tape
wrapping cable core.

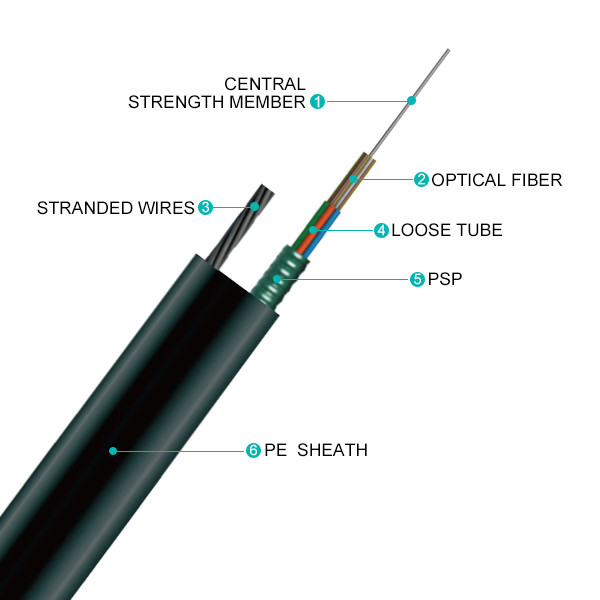

Structure :
- Loose tube
- Filling compound
- Aluminum (steel) tape coated with PE jacket
- Self-supporting by high grade zinc-galvanized stranded steel wires
Dimensions of Cable Constructions
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 24 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 36 | 1+6 | 12 | 1.9±0.1 | 1.6/1.6 | 1.6 | 9.6*15.2 | 168 |
| 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.6*15.2 | 168 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.8*16.3 | 190 |
| 96 | 1+8 | 12 | 2.2±0.1 | 1.6/3.5 | 1.6 | 12*17.5 | 205 |
| 144 | 1+12 | 12 | 2.2±0.1 | 2.0/6.4 | 1.8 | 15.8*21.3 | 320 |

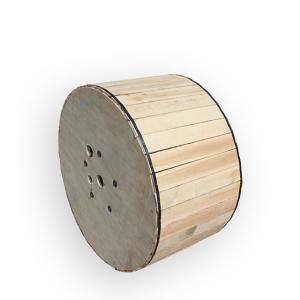

Drum
| Cable type | Drum |
| Height (mm) | Width (mm) | Inner diameter (mm) | Length (km) | Drum type |
| GYTC8S-(4-36) | 950 | 760 | 400 | 2 | wood drum |
| GYTC8S-(48-72) | 1000 | 760 | 400 | 2 | wood drum |
| GYTC8S-96 | 1200 | 760 | 500 | 2 | wood drum |
Features
1,High tensile strength of stranded wires meet the requirement of
self-supporting and reduce the installation cost
2,Good mechanical and temperature performance
3,High strength loose tube that is hydrolysis resistant
4,Special tube filling compound ensure a critical protection of
fiber
5,The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof
Picture Show
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our
customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable
4.What is your delivery time?
Usually within 3-5 working days
5.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000
KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
6.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
