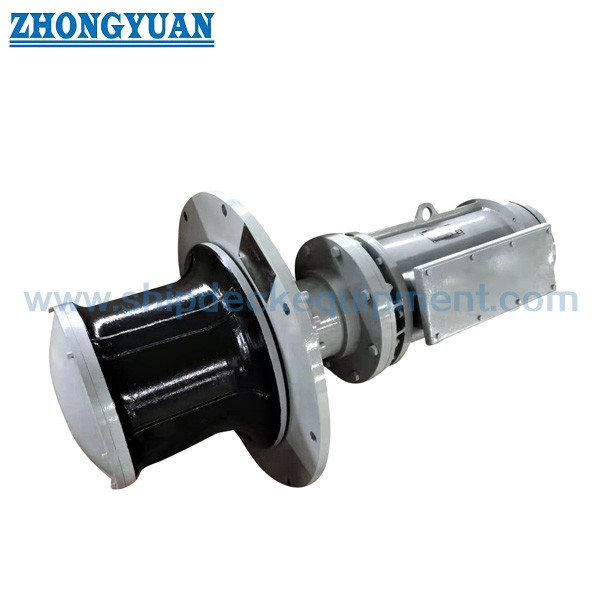

Electric Vertical Mooring Capstan Ship Deck Equipment
Description:
Electric Vertical Mooring Capstan Ship Deck Equipment is suitable for ship mooring. It includes electric motor, gear box, valve block, warping head, brake and electric switchboard & control unit as applicable.
Main Technical Specification:
Main Technical Parameters:
Working Load (KN) | Warping Speed (m/min) | Rope Dia. (mm) | Motor (kw) |
| 5 | 9-18 | Ф11 | 3/1.2 |
| 10 | 9-18 | Ф11 | 4.3/1.7 |
| 15 | 9-18 | Ф13 | 8.5/3.5 |
| 20 | 9-18 | Ф15 | 11/11/7.5 |
| 30 | 9-18 | Ф17.5 | 16/16/11 |
| 50 | 9-18 | Ф20.5 | 16 |
| 70 | 9-18 | Ф26 | 22 |
| 100 | 9-18 | Ф28 | 45/45/30 |
| 120 | 9-18 | Ф32.5 | 60/60/45 |
| 150 | 9-18 | Ф36.5 | 60/60/45 |
| 200 | 9-18 | Ф40 | 75/75/36 |
| 250 | 9-18 | Ф46 | 75/75/36 |

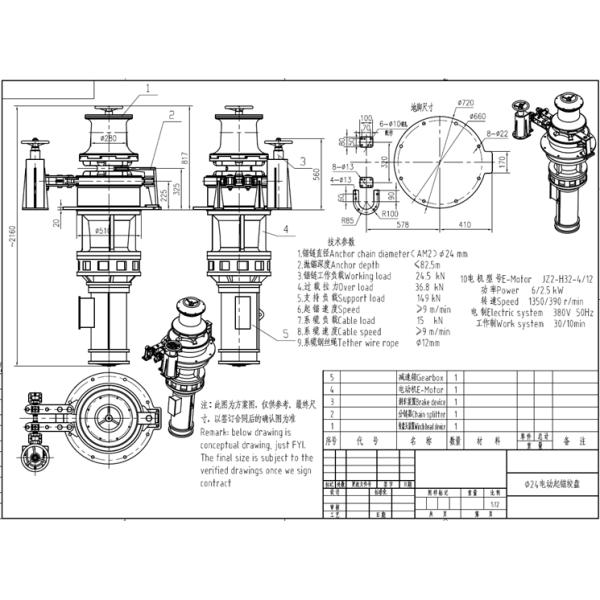

Drawing of Flange Deck Mounted Electric Vertical Mooring Capstan Ship Deck Equipment

|
