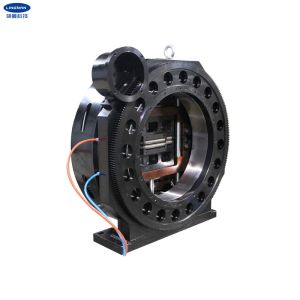

360mm Diameter Simple Pneumatic Double-acting Chuck for Laser Steel
Pipe Cutting Equipment
1. Descripition
We have more than 10 years' experience in focusing on R&D,
production and sales of various pneumatic chucks, electric chucks
and other power chucks.
Our chuck is mainly made for laser pipe cutting machine. The chuck
itself can be used as an independent rotating spindle and it can
hold the work-piece tightly while the chuck is rotating. Fast
clamping and loosening actions can be achieved through the side
rotating air intake, and the air source has to be disconnected to
work.
The product outputs by using a cylinder directly, the mechanical
efficiency is high, the energy loss is small, the output clamping
force is large, and the clamping force is stable. The chuck has a
simple structure, few elements and components, light weight, low
failure rates, stable performance, small moment of inertia and low
energy consumption. The axial dimension of the chuck is small, and
the cost for achieving zero tailing lower.
2. Performance Parameters
| G800JF-360 |
| 180mm |
| 4.5KN |
| 0.4-0.9MPa |
| 500r/min |
| 5-360mm |
| 420mm |
| 17.19g.m2 |
| 303kg |
| 452kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | L | O | R | S |
| G800JF-360 | 680 | 420 | 820 | 840 | 205 | 150 | 620 | 257 | 510 | 523 | 539 | 25 | 360 | 9 | 16-M8 | 18 |
4. Advantages
1. Full stroke design
2. Wide range of applications, diversification of processing
profiles
3. High repetitive positioning accuracy
4. Low maintenance cost, long service life
5. Multiple configurations are available
5.1 Solid or hollow
5.2 Comb-type or mortise-groove type claws
5. Production Line
6. Our Service
1. We are the direct factory with good price and fast lead time.
2. Professional design team work with you.
3. Professional QC team to guarantee the high quality.
4. Providing OEM & ODM service.
