Welded Mesh Used For Military Defense Hesco Barrier
Hesco Barriers Blast Wall Introduction
HESCO Barrier also known as Rock basket retaining wall, hesco
barrier, flood control barrier, etc. which is made of the steel
welded mesh and lined with non-woven geotextile, can be filled with
sand, earth, cement, stone, then as a defensive wall or bunker and
widely used in the military to protect safety.
Hesco Barriers Blast Wall Specifications
| Hesco size | 0.61*0.61m,1.37*1.06m,1.37*1.22m,2.12*1.52m,2.21*2.13m |
| Wire diameter | 3.8mm,4.0mm,4.5mm,5.0mm,etc. |
| Mesh size | 50*50mm,65*65mm,76.2*76.2mm,80*80mm,100*100mm |
| Geotextile | 200-400gr/m2 Heavy duty non-woven polypropylene,
color can be beige-sand, olive green,grey,white,etc |
| Spring diameter | 3mm,4mm,5mm,etc. |
| Finish | pre galvanized, galfan coated,hot dip galvanized |
| Packing | Wrapped with shrink film then on pallet |
| Accessories | Y post,Razor wire, Barbed wire |
Hesco Barriers Blast Wall Feature
1. A pre-fabricated gabion of galvanized welded mesh steel fitted
with a UV-protecting.
2. Polypropylene geo-textile liner.
3. Filling material is an easy- obtained mix of sand and small
stones.
4. It can be used together to any length, and can be stacked for
additional height.

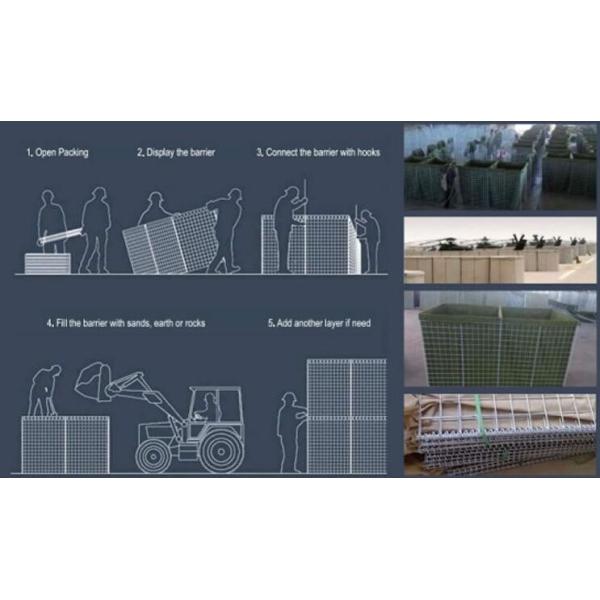

Installation:
1, Ends, diaphragms, front and back panels are placed upright on
the bottom section of wire mesh.
2, Secure panels by screwing spiral binders through the mesh
openings in adjacent panels.
3, Stiffeners shall be placed across the corners, at 300mm from the
corner. Providing a diagonal bracing, and crimped over the line and
cross wires on the front and side faces. None are needed in
interior cells.
4, Gabion box filled with graded stone by hand or with a shovel.
5, After filling, close the lid and secure with spiral binders at
the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the
lower tier may serve as the base of the upper tier. Secure with
spiral binders and add pre-formed stiffeners to exterior cells
before filling with graded stones,.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden
pallet)
2. bulk in the container
