Four Jaw Leveraged Pneumatic Feeding Laser Rotary Chuck with Hollow
Structure for Laser Cutting Machine
1. Description
We have more than 10 years' experience in focusing on R&D,
production and sales of various pneumatic chucks, electric chucks
and other power chucks.

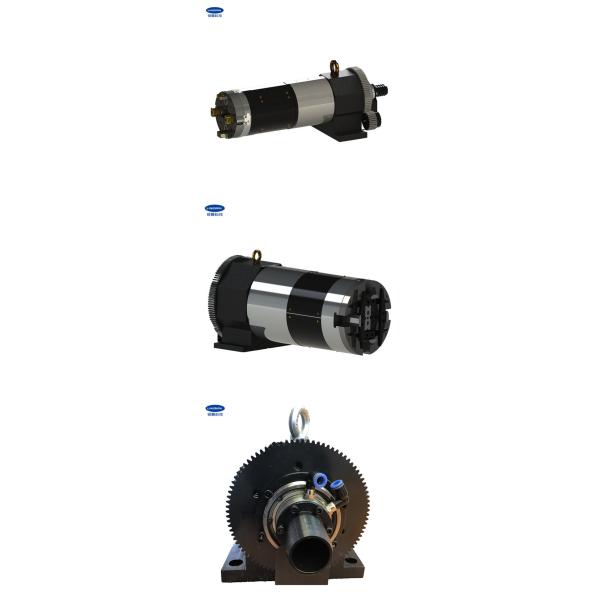

This hollow feeding chuck is specially designed for laser tube
cutting equipment. The quick clamping and loosening actions can be
made by air intake through the gyrator which is at the end of the
chuck.
it is impossible to affect the rotary precision because of the
bending deformation of the clamping claw. And the design length of
the clamping claw is short. Under the circumstance of maximum
clamping force, it will not occur the slippery and unstable
clamping. Moreover, the chuck is in a simple structure and light
wight.
About the structure, the center of the chuck is a through
structure. In order to make the environment clean and hygienic, the
product of this series can be equipped with a dust extraction
device on the back.
2. Performance Parameters
| W220T-40 |
| 70mm |
| 2.4KN |
| 0.3-1MPa |
| 400r/min |
| 10-225mm |
| 145mm |
| 0.23g.m2 |
| 43kg |
| 81kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | H | M | N | P | Q | S | T | G |
| W220T-40 | 280 | 145 | 224 | 308 | 120 | 70 | 250 | 40 | 36 | 3 | 25 | M8 | 18 | 424 | 669 |
4. Advantages
a. Full stroke design
b. Wide range of applications, diversification of processing
profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life
e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws
5. Production Line
6. Our Service
1. We are the direct factory with good price and fast lead time.
2. Professional design team work with you.
3. Professional QC team to guarantee the high quality.
4. Providing OEM & ODM service.
