Edge Protection Barrier:Modular Edge Protection Barrier with Custom Configurations
Edge Protection Barrier:The Ultimate Flexible Fall Protection System
Our Modular Edge Protection Barrier revolutionizes jobsite safety with an infinitely adaptable design
that conforms to your unique project requirements. Engineered for
complex construction sites, industrial facilities, and temporary
work zones, this system combines OSHA-compliant protection with
unparalleled customization options—all while maintaining seamless
structural integrity.
Edge Protection Barrier:Smart Modular Design Features
• Interlocking panels (1m/1.5m/2m lengths)
• Tool-free reconfiguration in under 60 seconds
• 15+ connection adapters for any angle (30°-180°)
• Embedded measurement markings for precision alignment
Edge Protection Barrier:Endless Configuration Possibilities
| Project Type | Ideal Configuration |
|---|
| Curved Facades | Flexible radius system |
| Multi-Level Sites | Stackable tier design |
| Equipment Zones | Gate-integrated layout |
| Tight Spaces | Compact 900mm height option |
Edge Protection Barrier:Technical Specifications
• Material: Powder-coated aluminum alloy
• Load Rating: 2.5kN/m (EN 13374 Class B)
• Weight: 9.8kg per 1.5m section
• Surface: Non-slip diamond plate tread
• Warranty: 10-year limited
Edge Protection Barrier:Why This Outperforms Standard Barriers
✅ One System Fits All - Eliminates multiple barrier types
✅ Grows With Your Project - Add/remove sections as needed
✅ No Special Tools - Simple hand-tightened connections
✅ Branding Ready - Custom color and graphic options
Design your perfect safety solution with our 3D configurator tool!
Welded by heavy wire, with 90 degree on the top and bottom, the
piece of toe board was welded on the bottom of the edge protection
fence to protect samll stone falling ,avoid hurting somebdoy. It
also has continous wire, no cut wire, make the temporary
portection fence smooth, flat and straight.
Our Edge Protection Barrier Specifications
| Wire Diameter | Mesh Size | Height | Length | Post | Thinckness | Color |
5mm 6mm 7mm | 50*100mm 50*150mm 100*200mm | 1.05m 1.10m | 1.3m--2.6m | 48mm | 1.5mm 1.8mm 2.0mm | Yellow Blue Red Other RAL color |
When ordering in large quantities, you have the option of
imprinting the customer's logo and colors.Various matching
accessories are available to provide solutions for various on-site
situations.

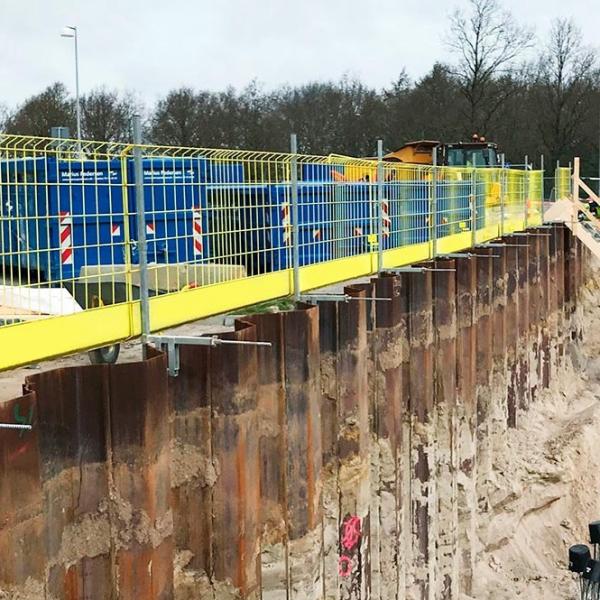

Our Edge Protection Barrier Cases:
we offer a wide range of safety solutions to reduce on site
accidents. Our pioneering edge protection barriers prevent
employees from injury. Whether they are working at ground level or
on elevated platforms, we have a selection of building site edge
protection safety measures to make sure they are protected while
they work.
Our Edge Protection Barrier advantage
1. Our products are versatile and durable - made from high quality
materials, hot-dipped galvanized and manufactured to the highest
standards of finish!
2. Our products are highly modular and simple to operate and
install.One-touch installation! Very convenient and effective!
3. High development capacity for innovative smart solutions
customized to customer needs
4. Our fence panels are curved at the top and bottom, and are
uniquely designed to provide maximum strength and prevent excessive
bending of the net.
5. The uniformity of the installation allows for maximum
supervision and control, thus maintaining a high level of safety at
all stages of construction.
No items will fall apart to prevent loss.Convenient and effective
packaging for long term product storage and easy transportation
