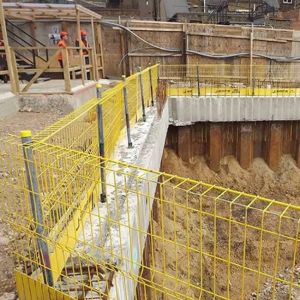

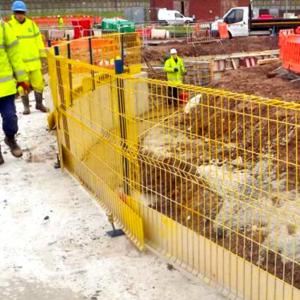

Excavations Fall Protection Barrier Quick Modular Assembly
Purpose-Built for Excavation Sites
Designed specifically to protect workers and bystanders around
trenches, pits, and excavations, this edge protection barrier
addresses the unique hazards of dug-out areas—where unstable edges,
sudden collapses, or accidental falls pose critical risks. Its
modular design ensures it can be deployed quickly around
irregularly shaped excavations, adapting to varying depths (from
shallow trenches to deep pits) and ground conditions (clay, sand,
or rocky soil). Whether used on construction sites, utility digs,
or archaeological excavations, it forms a secure perimeter that
prevents falls while allowing easy access for workers and
equipment.
The barrier’s standout feature is its rapid, tool-free modular
assembly, critical for excavation sites where work progresses
quickly and hazards emerge suddenly. Key design elements include:
- Interlocking Panels: Lightweight yet rigid steel or aluminum panels (4–6 feet long)
that snap together via tongue-and-groove joints or spring-loaded
clips, forming a continuous barrier around the excavation
perimeter.
- Adjustable Posts: Vertical supports with telescoping bases that adapt to uneven
ground, ensuring stability even on sloped or loose soil. Posts lock
into place with a twist, requiring no bolts or drilling.
- Modular Corners: Angled connectors that allow the barrier to pivot around the
excavation’s edges, whether rectangular, circular, or irregularly
shaped.
A 20-foot perimeter can be fully assembled by two workers in under
15 minutes—far faster than traditional wooden or welded
barriers—minimizing downtime between digging and securing the site.
Excavation sites often have soft or uneven soil, but this barrier
is engineered to stay anchored. It features:
- Ground Spikes: Heavy-duty steel spikes attached to post bases, driven into soil
to prevent tipping, even in loose dirt.
- Weighted Plates: Optional concrete or steel plates for hard surfaces (e.g., paved
areas) where spikes can’t be used, adding stability without
permanent installation.
- Soil Reinforcement: For trenches with sandy or unstable edges, the barrier can be
paired with geotextile fabric or gravel pads to distribute weight
and prevent sinking.
These features ensure the barrier remains secure during heavy rain,
equipment vibrations, or accidental impacts from machinery.
Safety is non-negotiable in excavation work, and this barrier meets
strict industry regulations, including OSHA’s 29 CFR 1926.651
(excavation requirements) and EN 12699 (temporary works for
excavations). It stands at a minimum height of 42 inches to block
falls, with mid-rails and toeboards (where required) to prevent
tools or debris from rolling into the trench. The barrier’s bright
safety colors (orange or yellow) enhance visibility, alerting
workers to the excavation edge—critical in busy sites with moving
equipment.
From narrow utility trenches to large foundation pits, this modular
barrier adapts:
- Trenches: Panels connect in straight runs to line long, narrow excavations,
with removable sections for access points (e.g., where workers
enter/exit the trench).
- Pits: Circular or polygonal configurations wrap around square or round
pits, ensuring 360° protection.
- Deep Excavations: Stackable panel extensions increase height for extra protection
around deep pits, where falls pose greater risks.
When the excavation is complete, the barrier disassembles quickly,
with components stacking compactly for transport to the next
site—reducing storage and logistics costs.
Our Edge Protection Barrier Specifications
| Wire Diameter | Mesh Size | Height | Length | Post | Thinckness | Color |
5mm 6mm 7mm | 50*100mm 50*150mm 100*200mm | 1.05m 1.10m | 1.3m--2.6m | 48mm | 1.5mm 1.8mm 2.0mm | Yellow Blue Red Other RAL color |
When ordering in large quantities, you have the option of
imprinting the customer's logo and colors.Various matching
accessories are available to provide solutions for various on-site
situations.

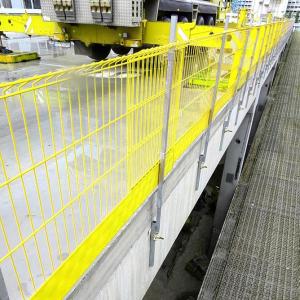

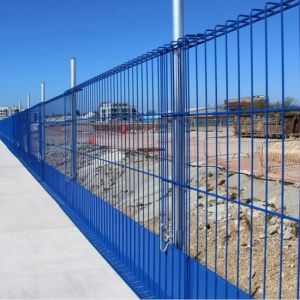

Our Edge Protection Barrier Cases:
we offer a wide range of safety solutions to reduce on site
accidents. Our pioneering edge protection barriers prevent
employees from injury. Whether they are working at ground level or
on elevated platforms, we have a selection of building site edge
protection safety measures to make sure they are protected while
they work.
Our Edge Protection Barrier advantage
1. Our products are versatile and durable - made from high quality
materials, hot-dipped galvanized and manufactured to the highest
standards of finish!
2. Our products are highly modular and simple to operate and
install.One-touch installation! Very convenient and effective!
3. High development capacity for innovative smart solutions
customized to customer needs
4. Our fence panels are curved at the top and bottom, and are
uniquely designed to provide maximum strength and prevent excessive
bending of the net.
5. The uniformity of the installation allows for maximum
supervision and control, thus maintaining a high level of safety at
all stages of construction.
No items will fall apart to prevent loss.Convenient and effective
packaging for long term product storage and easy transportation
