Steel Cord Conveyor Belt
Characteristics
Usage:
Steel cord conveyor belt is extensively applied in coal, mining,
port, metallurgy, power, chemical sectors for long-distance, large
amount and high-speed conveying of materials.
Features:
1. High tensile strength: Steel cord conveyor belt is suitable for
large span, long distance transportation of materials.
2. Small elongation in use: It need only a very short take-up
stroke distance.
3. Small diameter of drive pulley: Steel cord conveyor belt body
has a layer of longitudinally arranged steel cords as its carcass,
and thus is resistant to flex fatigue. Therefore, drive pulley of
smaller diameter can be used to make the equipment smaller.
4. High adhesion between rubber and steel cord: The steel cords are
coated with zinc on their surface, and also the rubber used has the
property of good adhesion with steel cords. Therefore, the rubber
is tightly adhered to the steel cords and is resistant to shock and
difficult to drop, so the rubber belts are long in life.
5. Even tension of steel cords: Out of our advanced techniques in
manufacturing, the steel cords are very evenly arranged and have
the same tension, so the belts are well balanced in running and
difficult to run away.
6. Good troughability: As the belt body has no transverse skeleton,
it is easy to from a deep trough, so the belts can load more
materials and prevent the materials from escaping.
7. Inspection of the belt with X-rays: Users can X-rays to inspect
damages of the skeleton steel cords on the conveyor machines to
prevent accidents from happening.
Cover Compounds:
General, Fire-resistant, Cold-resistant, Abrasion-resistant,
Heat-resistant and Chemical-resistant.
Application:
· Used in coal, ore, port, metallurgical, power and chemical
industries, suitable for long distance and heavy load
transportation of materials.
· Standards offered: GB/T9770, DIN22131, EN ISO 15236, SANS1366 and AS1333.
· Cover Compounds: General, Fire-resistant, Cold-resistant, Abrasion-resistant,
Heat-resistant and Chemical-resistant.

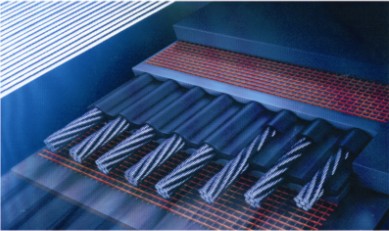

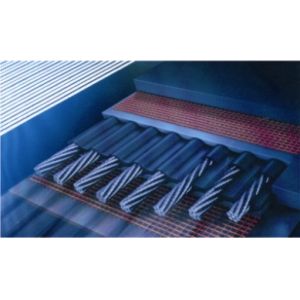

Steel cord structure:
Belt Structures:
Referenced Belt Specifications
