China Prefab Modern Metal Steel Frame Hotel Workshop House Steel
Structure Warehouse
Steel framework
(Q235B,Q345B) | 1.Steel beam
2.Steel column
3.Bracing
4.H cross-section steel,box cross-section steel,round pipe,round
steel,
L steel,etc. |
| Wall and roof | 1.Single steel sheet 0.36mm-0.6mm thick
2.Sandwich panel with EP,PU,glass wool and rock wool(50-120mm) |
| Door | 1.Roller door
2.Sliding door and sidewall door
3.Steel sheet, sandwich panel or aluminum-alloy.
4.According to your requirements |
| Window | 1.Sliding window
2.Plastic-steel frame or aluminum frame
3.According to your requirements |
| Gutter | 1.Aluminum-zinc steel sheet
2.Stainless sheet |
| Downpipe | 1.PVC
2.Stainless pipe |
| Skylight panel | FRP,1.5mm,2.0mm,2.5mm,according to your requirements |
| Ventilation | 1.Turbine vent
2.Ridge vent
3.According to your requirements |
| Other materialss | Self-screwing tapping,bolt,nut etc. |
Location of this project: Cebu, Philippines
Function: refrigeration storage for meat & food warehouse
Steel frame and members of the steel structure warehouse:
Main Steel Structure Frame
Warehouse Roof Purlin /Wall Purlin
Warehouse Roof Panel / Wall Panel
Embedded Column Bolt
Gutter & Downspout
Floor Deck & Shear Stud
Warehouse Roof Ventilation
Door & Window
Clean-Up & Closure
Parameter:
Type: Light Gauge Steel
Standard: China GB/T, ASTM, DIN, JIS, AISI, BS
Material: Low-carbon High-tensile Structural Steel
Forming: Hot-Rolled Steel
Connection Form: Bolt Connection, Weld
Member: Steel Beam & Steel Column
Type of Steel For Building Structure: High-Strength Steel
Carbon Structural Steel: Main structure is Q345& Secondary is Q235.

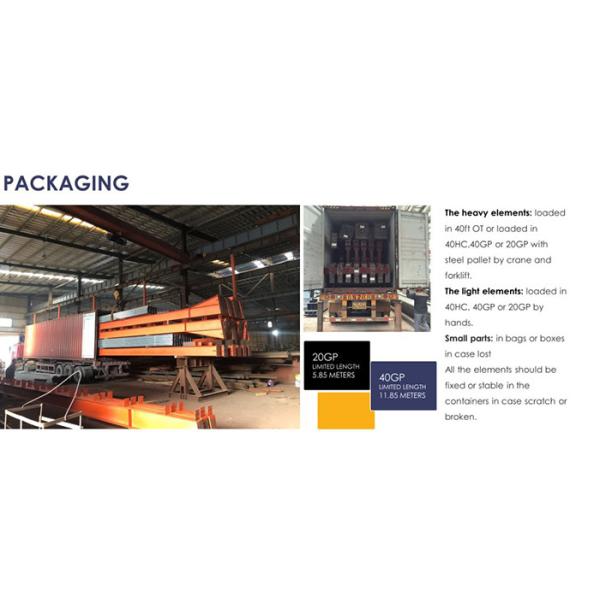

Transport Package: Standard Ocean Packing
Specification: Customized
Design Code: Wind Load / Earthquake
Installation process of the warehouse:
1.foundation engineering:
2.Set up the columns of the warehouse:
3.Install the beams and Roof& Wall purlins:
4.Wall&Roof panel of the warehouse:
Advantage of steel structure warehouse:
1. Excellent seismic performance .
2.Fire proof and water proof.
3.High space efficiency
4.Convenient for installing Hydroelectric & HVAC lines and pipes
5.short construction period and fast delivery
6. Convenient to install and maintenance
7.The roof panel is dark buckle type, which could stop the leak and
release the rivets in the longitudinal direction of roof.
8.Good environmental protection performance, for the main steel
structure can be recycled.
9.High strength with light deadweight especially for large span one
10.Our company to "high-quality architecture & ingenuity of
construction" for the purpose.

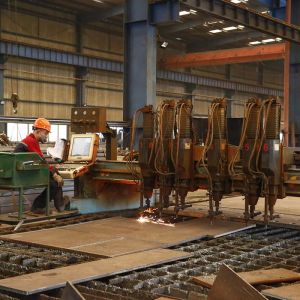

11. Our company holds CNC machine tool to achieve different kinds
of steel, which not only could meet the requirement of design
drawing but also can save costs.
Q&A:
1.What kind of company you are?
We are a profession steel structure manufacture for more than
twenty years. We are based on the green building industry and
engaged in the R&D,production and promotion of industrial
prefabricated buildings.We also hold several factories,so we can
give our clients best and competitive prices.What is more, we have
full range of steel structure buildings which are more than 100
kinds.
2.Can you guarantee the quality of the product?
Yes, we establish a procedure to check our products from raw
materials,processing,testing or inspection to the finished products
so that we can guarantee the quality of our product.
3.Can you offer designing service?
Yes, we have more than 30 engineering designers.We could design all
kinds of drawings as per our client's requirement.
4.Do you guide installation for your overseas clients?
Yes, we can provide direct and supervise of
installation,supervision and after-sales maintenance.We can send
our professional technical engineer to supervise installation on
site overseas
