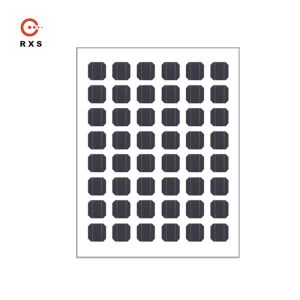

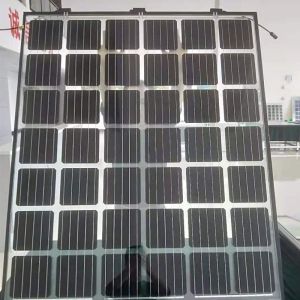

100W 550W Transparent Solar Panels Monocarstalline Silicon PV
Modules
Main features
1. Lower cost, excellent weak light effect.
2. Induce astigmatism/reflected light.
3. Generate electricity even in rainy and cloudy days.
4. Better high temperature performance, the total generating
capacity is higher.
5. No raw material limation, can be manufactured in mass, higher
VOC.
6. Less degradation, over 20 years' life time.
Performance parameters
| amorphous thin film solar panel / 80W |
| Type | RXJP3–ABS80 |
Electricity Performance
| Wp Peak Power Output (W) | 80Wp |
Vmp Maximum Power Voltage (V) | 99.2 V |
Imp Maximum Power Current | 0.81 A |
Isc Short Circuit Current(A) | 1.0 A |
Voc Open Circuit Voltage(V) | 132.9V |
| Max system voltage | 1000V |
Mechanical Performance
| Working Temperature | -40-85℃ |
| Front cover | 3.2mm thin film solar cell |
| Back cover | 4mm float glass |
Solar panel Temperature Coefficient
| Power TK(Pm) | -0.21%/℃ |
| Open Circuit Voltage TK(VOC) | -0.28%/℃ |
| Short Circuit Current TK(ISC) | +0.04%/℃ |
| Dimension(mm) | 1300*1100*7.8 |
| Module weight(kg) | 27KG |
Founded in 2001 in Wuhan, China, Rixin Technology operates as a
global solar power provider, as well as one of the China’s leading
crystalline silicon PV modules manufacturer, has been committed to
developing clean energy. Rixin Technology has over 180000m2 manufacturing bases, 3 wholly owned subsidiaries and over 10
holding companies, more than 500 employees. Through its rational
investment and industrial, Rixin Technology has formed an entire
chain including R&D of core technology, PV module production,
to “photovoltaic +” project development, design, construction,
intelligent operation and maintenance, investment and financing.
Its technological strength is shown through its title of National
Hi-tech Enterprise and Hubei province PV Research Center.
After 19 years development, Rixin Technology has completed more
than 1500 PV power plants, and built good business relationship
with the clients all over the world. The full range of Rixin
Technology’s products cover BIPV, PV modules, PV street lights,
Household power generation system, commericial distributed
generation system, and utility-scale power system. Rixin
Technology’s products have obtained TUV, CE, ISO14001, ISO9001,
OHSAS18001 etc. international certificates.
