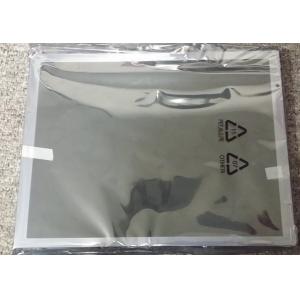

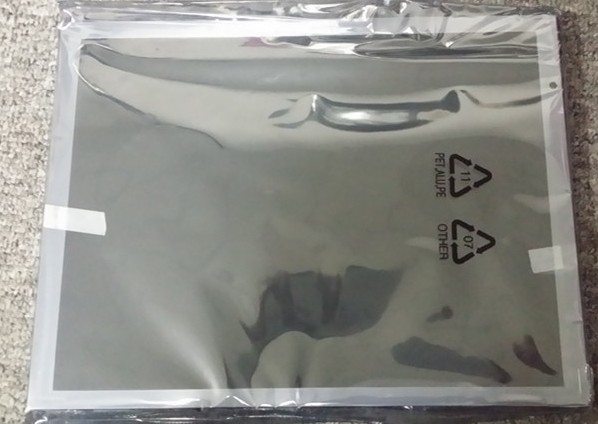

LB104V03-A1 LG. LCD 10.4" 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY

LB104V03-A1 LG. LCD 10.4" 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG. LCD
Model Number :	LB104V03-A1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	500PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LB104V03-A1 LG. LCD 10.4" 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY

LG. LCD LB104V03-A1 Application Details

Basic Detail :	Manufacturer		Model Name	LB104V03-A1 1 Compatible
	Panel Type	a-Si TFT-LCD , LCM	Another Name	LB104V03 (A1)
	Panel Size	10.4 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C

LG. LCD LB104V03-A1 Optical Details

Basic Information :	Luminance	400 cd/m² (Typ.)	Contrast Ratio	300 : 1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	5/25 (Typ.)(Tr/Td) (ms)
	Viewing Angle	60/60/40/50 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.295; Wy:0.325	Support Color	262K (6-bit)
Color Performance :	Color Temperature	7588K	White Uniformity	1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	60%	sRGB	81% coverage
	Adobe RGB	62% coverage	DCI-P3	62% coverage
	Rec.2020	44% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG. LCD LB104V03-A1 Mechanical Details

Pixel Features :	Number of Pixel	640(RGB)×480 [VGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.110×0.330 mm	Pixel Pitch(W×H)	0.330×0.330 mm [76PPI]
Physical Size :	Active Viewing	211.2(W)×158.4(H) mm	Overall Dim.	236(W)×180(H) mm
Physical Size :	Bezel Opening	215.6(W)×163.0(H) mm	Overall Depth	8.0/10.5 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Detail :	Mass	490g (Max.)	Surface	Antiglare, Hard coating (3H)

LG. LCD LB104V03-A1 Interface Details

Signal Electrical :	Input Current	175/200mA (Typ./Max.)		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	0.58/0.66W (Typ./Max.)	Signal Interface	Parallel RGB (1 ch, 6-bit)
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	HRS	KN10G-30S-1H	1 pcs	1.0 mm	30 pins	DRGB-30P1C6B-110A

LG. LCD LB104V03-A1 Lightting Details

Lamp Features:	Lamp Shape	Straight	Lamp Type	CCFL	Position	Edge light type (Top and Bottom)
Lamp Features:	Exchange	Replaceable	Amount	2 pcs	Life	40K(Min.) (Hours)
Lamp Electrical :	Input Current	2.0/6.0/7.0mA (Min./Typ./Max.)		Input Voltage	455/485/625V (Min./Typ./Max.)
	Frequency	40/55/80KHz (Min./Typ./Max.)		Turn-on Voltage	750/940V (Max.)(Ta=+25/0℃)
	Consumption	5.8/6.4W (Typ./Max.)
Interface Features :	Position		Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	JST	BHSR-02VS-1	2 pcs	3.5 mm	2 pins	BLL-2PINS-HL
Backlight Driver :	No

LG. LCD LB104V03-A1 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	10 pcs / box	323×270×262 mm	-

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
