35W 60fpm Solar Chimney Warning Light 20000cd UV Polycarbonate

    Buy cheap 35W 60fpm Solar Chimney Warning Light 20000cd UV Polycarbonate from wholesalers

    Buy cheap 35W 60fpm Solar Chimney Warning Light 20000cd UV Polycarbonate from wholesalers
    • Buy cheap 35W 60fpm Solar Chimney Warning Light 20000cd UV Polycarbonate from wholesalers
    • Buy cheap 35W 60fpm Solar Chimney Warning Light 20000cd UV Polycarbonate from wholesalers
    • Buy cheap 35W 60fpm Solar Chimney Warning Light 20000cd UV Polycarbonate from wholesalers

    35W 60fpm Solar Chimney Warning Light 20000cd UV Polycarbonate

    Ask Lasest Price
    Brand Name : ANNHUNG
    Model Number : AH-MS-A1
    Certification : ISO 9001, ICAO, ISO 14001, ISO 45001, IP67
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000pcs each month
    Delivery Time : 3-20days
    • Product Details
    • Company Profile

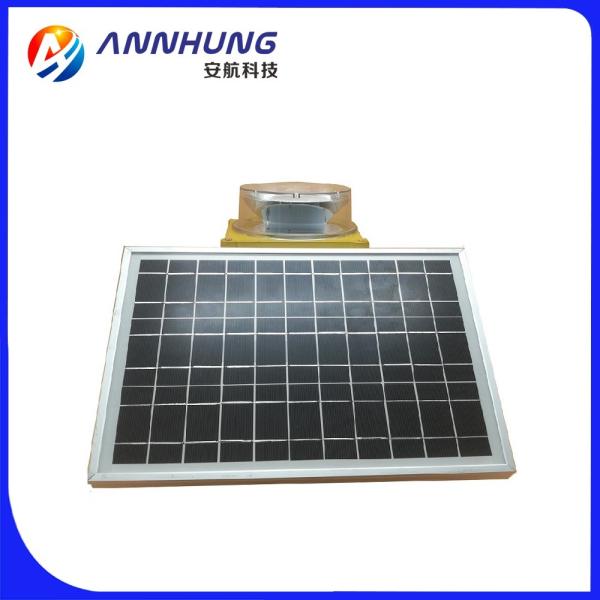

    35W 60fpm Solar Chimney Warning Light 20000cd UV Polycarbonate

    White 20000cd Aircraft Warning Light, 2000cd at night, Communication Tower Light, Solar Chimney Warning Light


    Features of solar aircraft warning light

    Electrical

    Ultra high intensity CREE LED light source saving power consumption and maintenance

    Physical

    UV & vibrations protected polycarbonate lens for converging light

    Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation

    Battery: Lithium ion battery

    Solar panel vertical degree is adjustable(10°15°20°25°30°35°40°)

    System design

    Solar panel as photocell for day & night working mode (dusk to dawn mode)

    ON/OFF button interface

    Optional

    GPS Synchronization

    Infrared LED for pilot using NVG


    Application of solar aircraft warning light

    AH-MS-A1 solar medium-intensity aricraft warning light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity lights & medium intensity type B light installed on the lower place.


    SPECIFICATIONSAH-MS-A1 Medium-intensity Type A L865 Solar Aircraft Warning Light
    Light Characteristics
    Light SourceUltra high intensity CREE LED
    Emitting ColorWhite
    Intensity(cd)≥20000cd(Daytime), ≥2000cd(Night)
    Horizontal Output(degrees)360
    Vertical Divergence(degrees)≥3
    Flash Characteristics20FPM
    Operation Mode24hours operation
    LED Life Experience(hours)>100,000
    Electrical Characteristics
    Operating Voltage(Vdc)12
    Circuit ProtectionIntegrated
    Solar Characteristics
    Solar Module TypeMono crystalline Silicon
    Output(watts)35W
    Charging RegulationMicroprocessor controlled
    Battery Characteristics
    Battery typeLithium ion battery(VRLA is optional)
    Nominal Voltage (V)11.1V
    Battery Capacity32AH (others is optional)
    Battery Service LifeAverage 3-5 years
    Autonomy (hours)120
    Physical Characteristics
    Lamb Body MaterialUV protected Polycarbonate
    Base MaterialDie casting aluminum
    Installation Size200×200×M10
    Overall Size (mm)

    500×450×320

    550

    Weight(kg)13
    Product Life Expectancy≥10 years
    Environmental Factors

    Ambient Temperature(℃)

    -55℃~+70℃

    -35~80
    Humidity0~95%
    Wind Speed80m/s
    WaterproofIP66
    Compliance
    ICAOAnnex 14 Volume 1,'Aerodrome Design and
    Operations’ Seventh edition July 2016, table 6.3
    Medium-intensity Type A Obstacle Light
    FAAL-865
    Optional

    GPS Synchronization


    NVG - compatible infrared (IR) LED


    Download the datashet of solar aircraft warning light: download AH-MS-A1 Medium-intensity Type A L865 So...
