Anchor Windlass Winch Hydraulic Power Unit

    Buy cheap Anchor Windlass Winch Hydraulic Power Unit from wholesalers

    Buy cheap Anchor Windlass Winch Hydraulic Power Unit from wholesalers
    • Buy cheap Anchor Windlass Winch Hydraulic Power Unit from wholesalers

    Anchor Windlass Winch Hydraulic Power Unit

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

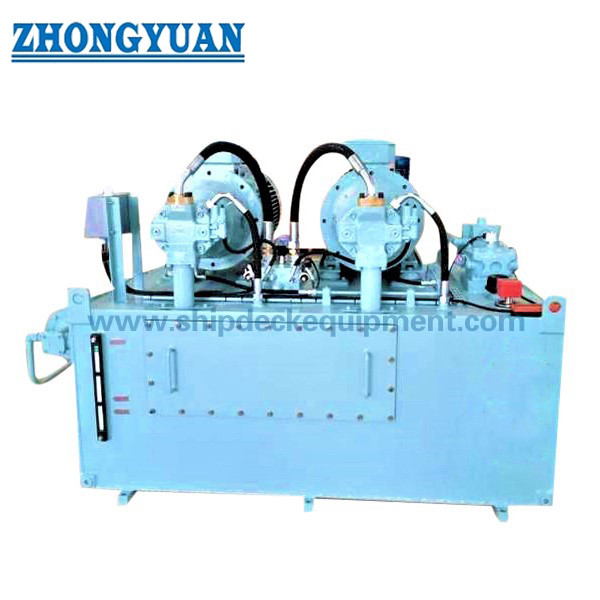

    Anchor Windlass Winch Hydraulic Power Unit

    Anchor Windlass Winch Hydraulic Power Unit


    Description

    Anchor windlass winch hydraulic power unit provides power to the hydraulic system. It mainly includes electric motor, hydraulic pump, sensors, valve blocks, oil tank, and electric switch board. It widely used in marine industry. We manufacture HPU for steering gear, deck machineries, and other hydraulic systems.


    Main Technical Specifications

    1 Hydraulic transmission: XHS1-200

    Displacement:201ml/r

    2 System work flow -10 L/min

    3 System work pressure -16.5 MPa

    4 Oil pump model: 10SCY14-1B

    5. E-Motor: Y112M-4-H

    Power: 4KW

    Electric system 415V /50Hz

    Protection class IP56

    6 Safety valve setting pressure -27MPa

    7 Protection level of electric control box IP44

    8 Button box protection level IP56

    9. Class Certificate: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.


    Drawing of Anchor Windlass Winch Hydraulic Power Unit


    Quality Anchor Windlass Winch Hydraulic Power Unit for sale
