Hydraulic Oil Extraction Machine 220-450 kg/h Oil Expeller Device
Oil Plant
Brief Introduction:
1. The Fully Automatic 6YL Spiral Oil Press Machine is a new
developm improvement product.
2. The equipment can press different kinds of oil materail, high
efficiency, cold and hot press. It is easy to operate, just one
person can operate it.
3. This equipment can work continuously for 7*24 hours. The service
life of this equipment is ten years or longer.
4. The vacuum oil filter can help you to get food pure healthy oil
directly, you can sale it in local market.
Keywords:
The main components of our machines are made by ourselves to
guarantee the quality of the machine and the oil rate.
2. Healthy and Natural
The oil filteration is dense that you can get clean oil.
3. Get more oil
The diameter of the spiral squeezer is longer than other similar
products and the squeezer speed is low so that the raw material can
be pressed clean.
4. High efficiency
The L shape of oil cake feeding system can directly press the oil
cake twice, then you can get more oil.
5. Temperature Control System
The temperature of the oil is automatically temperature controlled
to improve the processing speed of the oil, and the low temperature
environment can be produced normally.
Working priciple:
The working principle is that the oil is extruded from the material
embryo and discharged from the slots and oil troughs of the strip
and circle rows by the continuous pushing of the material embryo in
the squeezing chamber and the change of the space volume of the
squeezing chamber from large to small, and the oil can be directly
eaten in a barrel after deep filtration of the oil tank.
Technical parameters of oil presser:
| Model | 6YL-120 | 6YL-130 | 6YL-150 | 6YL-160 | 6YL-180 |
| Weight | 1200 kg | 1600 kg | 1800 kg | 1900 kg | 1980 kg |
| Vacuum power | 1.1 kw | 1.1 kw | 2.2 kw | 2.2 kw | 2.2 kw |
| 3phase | 15 kw | 22 kw | 30kw | 30 kw | 37 kw |
| Squeezer speed | 100-130 | 100-130 | 100-130 | 100-130 | 100-130 |
| Capacity(kg/h) | 120-160 | 180-300 | 220-450 | 300-600 | 400-750 |
| Dimension(mm) | 2000*1600*2700 | 2150*1600*2700 | 2550*1800*2700 | 2650*1900*2700 | 2700*2000*2700 |
Detailed Photos

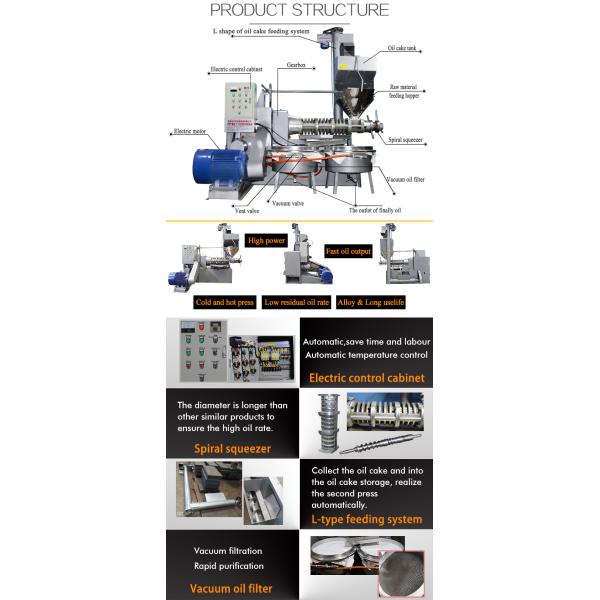

Parts of high quality oil presser:
Seeds application of screw oil making machine
If you want to process other special raw material, please cantact
us to ensure.
Workflow
Packing & shipping
We use strong wooden case to ensure the safety of your goods in
transit.
Our service
Provide quality service
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Specialist manufacture
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee
period, the seller will provide maintenance free service.(Except
the breakdown and destroy caused by person and force majeure)
About us
We have our factory, so we can provide product with the best price
and after-sale service.
Since1998, Henan Lewin Industry Development Co., Ltd was found
officially registered under Henan Companies Registry.It is a firm
which has the ability for Manufacture,Research&Development, Sale and
Export. Our mainproducts are hydraulic oil press machine, spiral
oil press machine, the accessory equipment for the oil press
machine and other machine.
