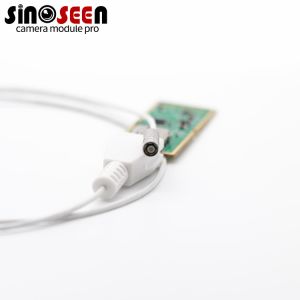

Medical Endoscope OEM Camera Modules Vision Solution OV9734 Sensor

Name: Medical Endoscope OEM Camera Modules Vision Solution OV9734 Sensor
Brand: Sinoseen
Price: 1 USD

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-1MP-OV9734-S2
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

Medical Endoscope OEM Camera Modules Vision Solution OV9734 Sensor

Medical Endoscope OEM Camera Modules Vision Solution OV9734 Sensor

OEM Customizable Medical Endoscope USB Camera Module Vision Solution

Endoscope OEM Camera Module

This is a OEM customizable medical endoscope USB camera module vision solution, using USB Type C interface, can be connected to the mobile phone APP, plug and play, real-time viewing, very convenient. The lens is equipped with 4 LED fill lights, and water-proof glue is used for water-proof treatment.
Because of its compact design, this endoscopic camera module is very popular among doctors and is often used in colonoscopy endoscopes or gastroscopic endoscopes.
If you have similar needs, you can use this design to customize your own endoscopic camera module. We have a professional engineering team to discuss with you various requirements such as structural dimensions and functions.

Specification

Module No	SNS-1MP-OV9734-S2
Pixel Size	1.4μm x 1.4μm
Effective Pixels	1MP 1280(H) x 720(V)
Video output	Raw Bayer10bit/8bit
Active Array Size Video Rate	30FPS
Image Sensor	1/9"
Sensor Type	Omnivision OV9734
Lens view	FOV60°(optional),F/N(optional)
TV Distortion	<1%
AEC	Support
AEB	Support
AGC	Support
Operating voltage	AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature	-20～70℃
Storage temperature	0～50℃
Dimensions	Customizable

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Camera Module Application Areas

Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
