Aluminum Alloy Housing Night Vision USB Camera Module 4 LEDs For Vehicle

Name: Aluminum Alloy Housing Night Vision USB Camera Module 4 LEDs For Vehicle
Brand: Sinoseen
Price: 1 USD

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-5MP-IMX335-H1
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

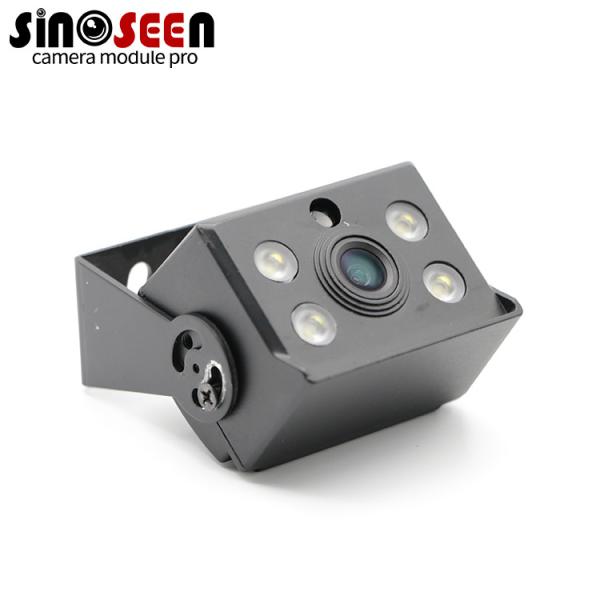

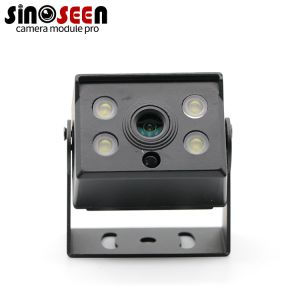

Aluminum Alloy Housing Night Vision USB Camera Module 4 LEDs For Vehicle

Aluminum Alloy Housing Night Vision USB Camera Module 4 LEDs For Vehicle

In Vehicle Night Vision USB Camera Module With Aluminum Alloy Housing And 4 LEDs

Night Vision USB Camera Module

This is our newly developed car camera module. It uses an all-aluminum alloy shell and uses waterproof rubber gaskets for waterproofing.
Today, with the rapid development of automotive electronics and security technology, on-board cameras have become indispensable hardware for traffic safety. It mainly has the following functions:
1. Provide reliable evidence for the analysis and judgment of traffic accidents.
2. It is convenient for drivers and passengers to check the situation in the car.
3. Provide a basis for handling problems such as passenger disputes, lost property finding, robbery and theft prevention in the car.
4. Provide monitoring of the environment inside and outside the vehicle compartment to provide safety guarantee for vehicle driving.
performance

Specification

Model No	SNS-5MP-IMX335-H1
Sensor	1/2.8’’ SONY IMX335 CMOS
Pixel	5 Mega Pixel
Most effective pixels	2592(H) x 1944(V)
Pixel Size	2.0µm x 2.0µm
Chroma	Color
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
Microphone	Built-in
Dynamic range	72dB
Sensitivity	>= 2000mV
Interface type	USB2.0 high speed
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focal length: 3.6MM
	Lens Size: 1/2.8 inch
	FOV: 90°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 150mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	38mm38mm (compatible with 32mm32mm)
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

FAQ:

Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
