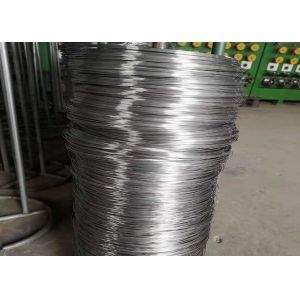

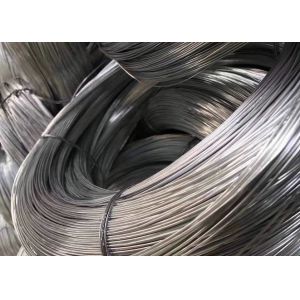

In Spool Diameter Range 0.115mm Steel Grade Stainless Steel 304
Stainless Steel Light Cable
Specifications
1. Stainless steel soft wire, code: s, soft. Commonly known as
hydrogen wire: bright surface, soft, no magnetism, fatigue
resistance, large extension force and other characteristics.
Specification: 0.03-5.0mm, material: 201, 304, 304L, 316, 316L,
310, 310S, 321, etc.
2. Stainless steel light cable, code: LD, light draw. After heat
treatment, the steel wire shall be pulled with small reduction
surface. The surface is bright, soft, fatigue resistant, and has
certain elongation. Specification: 0.03-5.0mm, material: 201, 304,
304L, 316, 316L, etc.
3. Stainless steel cold cable, code: WCD, cold draw. The surface is
smooth, toughness is good and wear resistant. Specification:
0.03-6.0mm, material: 201, 304, 304L, 316, 316L, etc.
4. Stainless steel spring wire: high hardness, strong elasticity,
good wear resistance and compression resistance. Specification:
0.15-5.0mm, material: 302, 304H, 304L, 316, 316L, 310, 310S, 321,
etc.
Material composition table
AISI Material | Chemical composition (%) |
| C | Si | Mn | P | S | Ni | Cr | Mo | Cu | Ti |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.06 | ≤0.03 | 3.5~5.5 | 16~18 | - | - | - |
| 304 | <0.08 | <1.0 | <2.0 | <0.035 | <0.03 | 8~10 | 17~19 | - | - | - |
| 304L | <0.03 | <1.0 | <2.0 | <0.04 | <0.03 | 9~13 | 18~20 | - | - | - |
| 304HC | <0.06 | <1.0 | 1.2-1.8 | <0.035 | <0.03 | 8~11 | 17~19 | - | 2.0-3.0 | - |
| 316 | <0.08 | <1.0 | <2.0 | <0.04 | <0.03 | 10~14 | 16~18 | 2.0~3.0 | - | - |
| 316L | <0.03 | <1.0 | <2.0 | <0.04 | <0.03 | 12~15 | 16~18 | 2.0~3.0 | - | - |
| 310S | <0.08 | <1.5 | <2.0 | <0.04 | <0.03 | 19~22 | 24~26 | - | - | - |
| 321 | <0.08 | <1.0 | <2.0 | <0.045 | <0.03 | 9~13 | 17~19 | - | - | >0.035 |
| 301 | <0.15 | <1.0 | <2.0 | <0.04 | <0.03 | >7 | 16~18 | - | - | - |
| 302 | <0.15 | <1.0 | <2.0 | <0.04 | <0.03 | >8 | 17~19 | - | - | - |
| | | | | | | | | | |
Product specification parameter table
| Wire diameter(mm) | Tolerance(mm) | Maximum diameter deviation(mm) |
| 0.020-0.049 | +0.002 -0.001 | 0.001 |
| 0.050-0.074 | ±0.002 | 0.002 |
| 0.075-0.089 | ±0.002 | 0.002 |
| 0.090-0.109 | +0.003 -0.002 | 0.002 |
| 0.110-0.169 | ±0.003 | 0.003 |
| 0.170-0.184 | ±0.004 | 0.004 |
| 0.185-0.199 | ±0.004 | 0.004 |
| 0.-0.299 | ±0.005 | 0.005 |
| 0.300-0.310 | ±0.006 | 0.006 |
| 0.320-0.499 | ±0.006 | 0.006 |
| 0.500-0.599 | ±0.006 | 0.006 |
| 0.600-0.799 | ±0.008 | 0.008 |
| 0.800-0.999 | ±0.008 | 0.008 |
| 1.00-1.20 | ±0.009 | 0.009 |
| 1.20-1.40 | ±0.009 | 0.009 |
| 1.40-1.60 | ±0.010 | 0.010 |
| 1.60-1.80 | ±0.010 | 0.010 |
| 1.80-2.00 | ±0.010 | 0.010 |
| 2.00-2.50 | ±0.012 | 0.012 |
| 2.50-3.00 | ±0.015 | 0.015 |
| 3.00-4.00 | ±0.020 | 0.020 |
| 4.00-5.00 | ±0.020 | 0.020 |
Technology
Stainless steel wire drawing is a metal plastic processing process
in which the wire rod or wire blank is pulled out from the die hole
of drawing die under the action of drawing force to produce small
section steel wire or non-ferrous wire. Wire with different cross
section shape and size of various metals and alloys can be produced
by drawing. The drawn wire has the advantages of accurate size,
smooth surface, simple drawing equipment and die, and easy
manufacturing.
Packaging

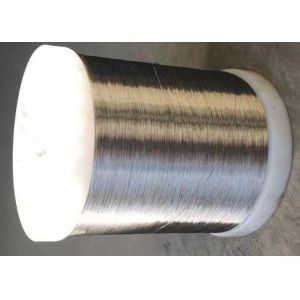

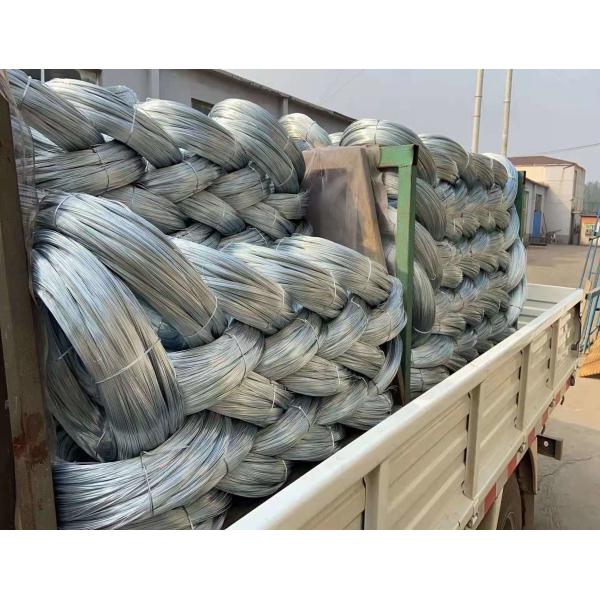

Shaft wire or coil wire, wrapped with plastic cloth, bulk, pallet
or wooden box according to customer requirements.
