Ductile Iron 28mm Solid Thimble Wire Rope Sling Assembly

    Buy cheap Ductile Iron 28mm Solid Thimble Wire Rope Sling Assembly from wholesalers

    Buy cheap Ductile Iron 28mm Solid Thimble Wire Rope Sling Assembly from wholesalers
    • Buy cheap Ductile Iron 28mm Solid Thimble Wire Rope Sling Assembly from wholesalers
    • Buy cheap Ductile Iron 28mm Solid Thimble Wire Rope Sling Assembly from wholesalers
    • Buy cheap Ductile Iron 28mm Solid Thimble Wire Rope Sling Assembly from wholesalers
    • Buy cheap Ductile Iron 28mm Solid Thimble Wire Rope Sling Assembly from wholesalers
    • Buy cheap Ductile Iron 28mm Solid Thimble Wire Rope Sling Assembly from wholesalers

    Ductile Iron 28mm Solid Thimble Wire Rope Sling Assembly

    Ask Lasest Price
    Brand Name : Anfeng / AF
    Model Number : TGH-11
    Certification : CE, GS, ISO 9001
    Price : Call or Email for quote
    Payment Terms : T/T, L/C
    Supply Ability : 10,000 pcs per month
    Delivery Time : Within 45 days after order confirmation
    • Product Details
    • Company Profile

    Ductile Iron 28mm Solid Thimble Wire Rope Sling Assembly

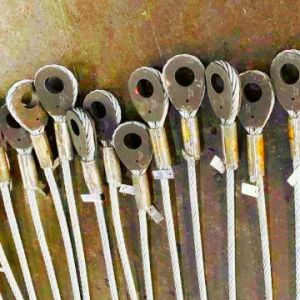

    28mm Wire Rope Sling with Solid Thimble Eye, Eye Sling, greater protection against wear and deformation of rope eye
    Wire Rope Sling and Wire Rope attachment
    Product Description

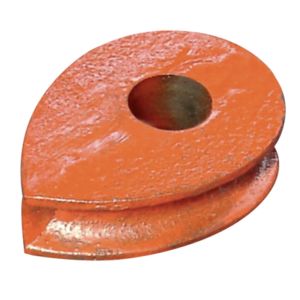

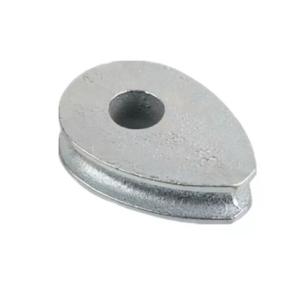

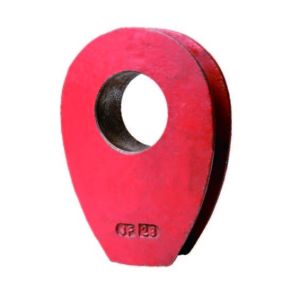

    Our Solid Thimbles are used to protect the eyes of cable and wire rope slings from abrasion by providing a solid steel barrier between the fragile cable strands and the other rigging fitting used in the connection.
    They are designed according to GB/T 5974.2-2006 for making a 'hard' eye with wire rope, it creates a loop at wire rope ends. The thimbles provide a means for connecting wire rope to attachments.
    Important features:
    - Recommended used for wire ropes sized from 8mm to 60mm.
    - Wire rope with 8mm to 32mm in diameter are equipped with Solid Thimble that made of cast steel.
    - Wire rope with 36mm to 60mm in diameter are equipped with Solid Thimble that made of ductile cast iron. Ductile iron offers increased fatigue- and impact-resistance over cast iron due to the inherent shape of its nodular graphite inclusions.
    - Finish: self coloured, rust coloured.
    - Sizes for the hole of the thimble can be customized upon request.
    Specification
    Product code

    Rope dia.

    (mm)

    Dimensions (mm)

    Weight

    (kg)

    F

    max

    F

    min

    CABLR

    G

    max

    DE
    TGH-0189.28.614.0

    0

    -1.4

    20+0.149 +0.06540±256±359+3 06.05200.08
    TGH-021011.510.817.5255070747.50.17
    TGH-031213.812.921.0306084899.00.32
    TGH-041416.115.124.535+0.180 +0.080709810410.50.50
    TGH-051618.417.228.0

    0

    -2.8

    4080±4112±6118+6 012.00.78
    TGH-061820.719.431.5459012613313.51.14
    TGH-072023.021.535.05010014014815.010301.41
    TGH-082225.323.738.555+0.220 +0.10011015416316.51.96
    TGH-092427.625.842.0

    0

    -3.4

    60120±6168±9178+9 018.02.41
    TGH-102629.928.045.56513018219319.53.46
    TGH-112832.230.149.07014019620721.04.30
    TGH-123236.834.456.08016022423724.06.46
    TGH-133641.438.763.0

    0

    -4.4

    90+0.260 +0.120180±9252±13267+13 027.09.77
    TGH-144046.043.070.010020028029630.012.94
    TGH-154450.647.377.011022030832633.0154517.02
    TGH-164855.251.684.012024033635636.022.75
    TGH-175259.855.991.0

    0

    -5.5

    130+0.305 +0.145260±13364±18385+19 039.028.41
    TGH-185664.460.298.014028039241542.035.56
    TGH-196069.064.5105.015030042044545.048.35
    About Anfeng Lifting & Rigging
    Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.
    Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.
    We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
