    12mm Wire Rope Sling Assembly , Hand Spliced Wire Rope Sling

    Ask Lasest Price
    Brand Name : Anfeng / AF
    Model Number : SCW12
    Certification : CE, ISO 9001
    Price : Call or Email for quote
    Payment Terms : T/T, L/C
    Supply Ability : 10,000 pcs per month
    Delivery Time : Within 45 days after order confirmation
    • Product Details
    • Company Profile

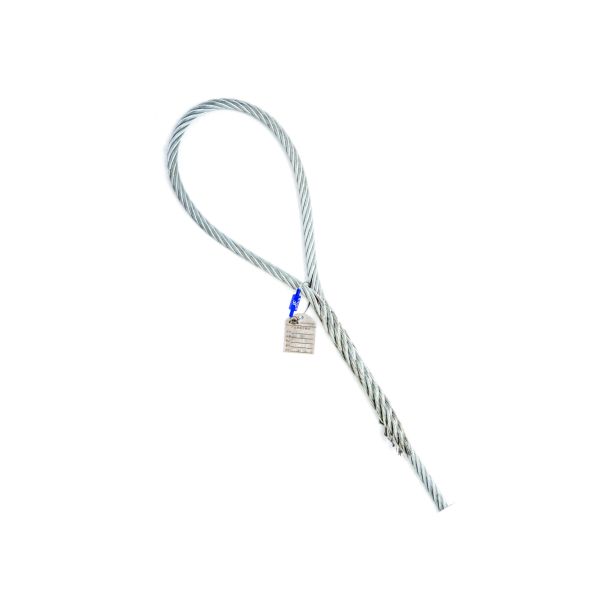

    12mm Wire Rope Sling Assembly , Hand Spliced Wire Rope Sling

    12mm Hand Spliced Wire Rope Sling, steel core, can be equipped with Thimble
    Standard Eye and Thimble Eye Wire Rope Sling, steel core
    Product Description
    A Hand Spliced Wire Rope Sling is constructed when the end of a single-part wire rope is bent back along the rope to create a looped eye shape, and strands at the end of this eye are then tucked back inside the body of the rope by hand. The eye shape helps to create a sling that can be used for a variety of applications.
    Our Hand Spliced Wire Rope Slings with steel core feature 6 x 19, 6 x 37 or 8 x 61 Construction, Extra Improved Plow Steel (EIPS) wire rope with an Independent Wire Rope Core (IWRC). A Hand Spliced Wire Rope is a common type of Wire Rope Sling.
    You can often see hand-spliced ropes being utilised with thimbles. These are metallic objects that resemble the shape of the eye loop. With this small fitting, the rope will be bent around the thimble to create the eye loop. With the internal thimble offering a strong structural support.
    Hand-splicing can be complete without the need for a thimble. But this product is recommended as it adds an extra layer of safety and strength to an operation.
    All hand-splicing provided by us will have been safely, reliably and professionally carried out on site by our experienced team.
    Specification
    Product code

    Rope Dia.

    (mm)

    Eye Dimensions (mm)WLL (tons)
    AB6×37 (b) 1670MPa

    6×19 (a) & 6×37 (a)

    8×61 (b) 1770MPa
    SCW066180900.290.33-
    SCW077180900.400.45-
    SCW0882001000.520.58-
    SCW0992001000.660.74-
    SCW10102001000.810.91-
    SCW11112201100.991.10-
    SCW12122401201.171.31-
    SCW13132601301.381.54-
    SCW14142801401.601.78-
    SCW16163201602.092.33-
    SCW18183601802.642.95-
    SCW20204002003.263.85-
    SCW22224402203.944.66-
    SCW24244802404.695.55-
    SCW26265202605.516.51-
    SCW28285602806.397.55-
    SCW30306003007.338.67-
    SCW32326403208.349.87-
    SCW34346803409.4211.14-
    SCW363672036010.5612.49-
    SCW383876038011.7613.91-
    SCW404080040013.0315.42-
    SCW424284042014.3717.00-
    SCW444488044015.7718.65-
    SCW464692046017.2420.39-
    SCW484896048018.7722.20-
    SCW50501,00050020.3624.09-
    SCW52521,04052022.0326.05-
    SCW54541,08054023.7528.10-
    SCW56561,12056025.5430.21-
    SCW58581,16058027.4032.41-
    SCW60601,20060029.3234.69-
    SCW64641,28064033.3639.46-
    SCW66661,32066035.4841.97-
    SCW68681,36068037.6744.55-
    SCW70701,40070039.9147.21-
    SCW72721,44072042.2349.95-
    SCW74741,48074044.6152.76-
    SCW76761,52076047.0555.65-
    SCW78781,560780-58.62-
    SCW80801,600800-61.66-
    SCW82821,640820-64.78-
    SCW84841,680840-67.98-
    SCW86861,720860-71.26-
    SCW88881,760880-74.61-
    SCW90901,800900--65.11
    SCW96961,920960--74.08
    SCW1001002,0001,000--80.38
    SCW1061062,1201,060--90.32
    SCW1101102,2001,100--97.26
    SCW1201202,4001,200--115.75
    SCW1301302,6001,300--135.84
    Note:
    1. Reference standard: EN 13411-2: 2001, GB/T 16762-2009, GB/T 16271-2009.
    2. Strength of above mentioned 6x19 (a) and 6x37 (a) wire ropes: 1670 MPa for ropes below 20mm in diameter, and 1770 MPa for the ropes above 20mm in diameter.
    3. The wire rope structure, tensile strength and working load limited could be customized according to customer's request.
    4. Minimum Breaking Loads is 5 times of Working Load Limited.
    5. Eye dimensions can be customized in accordance with customer's requirements.
    About Anfeng Lifting & Rigging
    Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.
    Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.
    Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
