OEM ODM 100Ah 5KWh 48V Lifepo4 Battery Phosphate Solar Systems

    Buy cheap OEM ODM 100Ah 5KWh 48V Lifepo4 Battery Phosphate Solar Systems from wholesalers

    Buy cheap OEM ODM 100Ah 5KWh 48V Lifepo4 Battery Phosphate Solar Systems from wholesalers
    • Buy cheap OEM ODM 100Ah 5KWh 48V Lifepo4 Battery Phosphate Solar Systems from wholesalers
    • Buy cheap OEM ODM 100Ah 5KWh 48V Lifepo4 Battery Phosphate Solar Systems from wholesalers

    OEM ODM 100Ah 5KWh 48V Lifepo4 Battery Phosphate Solar Systems

    Ask Lasest Price
    Brand Name : Amazing Energy
    Model Number : 48V 100Ah
    Certification : ce/rohs/msds/un38.3
    Payment Terms : T/T
    Supply Ability : 1000000 Piece/Pieces per Month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    OEM ODM 100Ah 5KWh 48V Lifepo4 Battery Phosphate Solar Systems

    OEM ODM 100Ah 5KWh 48V Lifepo4 Battery Phosphate Solar Systems

    48V Lifepo4 Battery 48V 100Ah Lithium Iron Phosphate Solar 5KWh Systems
    Function Parameter
    Norminal Battery Energy
    5120kwh
    Norminal Capacity
    100Ah
    Norminal Voltage
    48V
    Internal Resistance
    ≤22mΩ
    Cycle Life
    >6000
    Months Self Discharge
    <3%
    Charge Data
    DC Normal Charge Voltage
    54.75±1Vdc
    Charge Mode
    0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV)
    Recommended Charger Current
    ≤50A
    Allowed Max. Charge Current
    50Adc
    Charge Cut-off Voltage
    54.75±1Vdc
    Discharge Data
    Continuous Discharge Current
    50A
    Allowed Max. discharge current
    100A (option:200Adc)
    Rang of DC discharge voltage
    37.5V-54.75Vdc
    Working Condition
    Charge Temperature
    0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
    Discharge Temperature
    -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
    Storage Temperature
    0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
    Enclosure Protection Level
    IP20
    Mechanical Data
    Cell & Method
    /
    Shell material
    Iron
    Dimensions
    482*400*177mm
    Weight (lbs./kg.)
    /

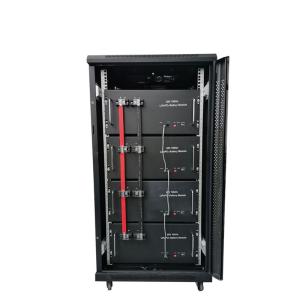

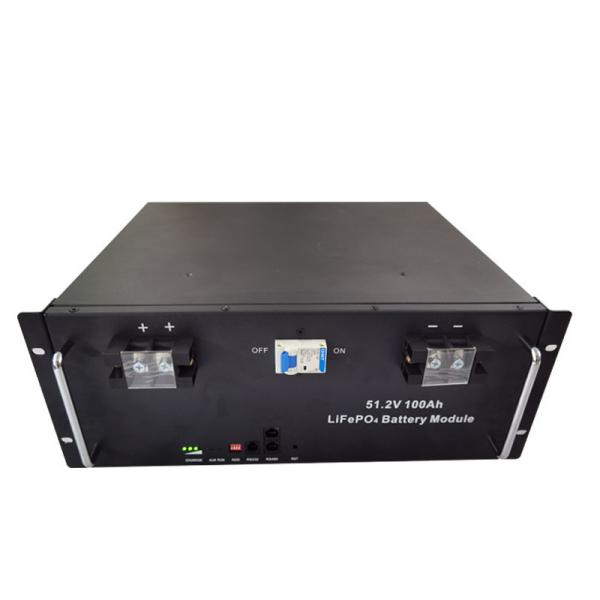

    The images of 2U 48V 100Ah 5KWH battery pack


    System example diagram of 48V 100Ah Lithium Iron Phosphate
    Modular design lithium battery
    LIFePO4 battery, Safe, Longer lIfe span. Modular deslgn, Easy to stack.
    Larger energy capaclty.
    Wlde temperature range of -20-25°C.
    Battery Application of 48V Lifepo4 Battery

    FAQ
    Q1: Before order, can I have samples for testing?
    A: Yes, we can provide you samples for testing firstly.


    Q2: Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery.


    Q3: How to proceed an order?
    A: 1. Contact our service & let us know your requirements or application.
    2. We quote according to your requirements or our suggestions.


    Q4: What kind of environment should lithium batteries store?
    A: -40°C~50°C, 65±20%RH storage for a long time(>3 months)
    and the storage condition shall be:<35°C , 65±20%RH


    Q5: What is MOQ?
    A: Low MOQ, 1pc for sample checking is available.
