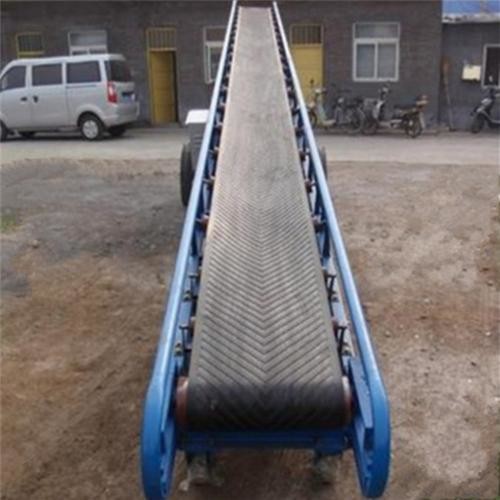

Durable China Screw Belt Conveyor Easy Maintain Machine Trash
Removal conveyor belt material portable Optional Color
Attention:
All types of equipments can be customized according your
requirement. Please feel free to tell your parameters, flow charts
or other demands. Quick Reply will be delivered in 12 hours by
email or online chat.
Application
The PD belt conveyor is suitable for chemical, metallurgical, coal,
water and electricity, building materials and other departments. It
can transport various bulk, granular and other bulk materials, so
it is often matched with the grid or dewatering machine in the city
sewage. Slag or dewatered sludge.
Parameters
| Model | PD-500 | PD-800 | PD-1000 |
| 500 | 800 | 1000 |
| Transmission bandwidth B(mm) |
Delivery value Q (m3/h) |
Installation angle α(°) | 0.0 | 25.0 | 50.0 | 75.0 |
| 10.0 | 22.5 | 45.0 | 67.5 |
| 15.0 | 18.75 | 37.5 | 56.25 |
| 20.0 | 15.0 | 30.0 | 45.0 |
| Electric drum diameter D(mm) | 220,240,315,400,500(Depending on the L, the) |
| Installation size (mm) | B1 | B+250 |
| L | According to the user's requirements |
| 工 | According to the user's requirements |
| H1 | H+80+(D/2) |
Structure and Working Principle
The equipment adopts a continuous trough belt type. The material
falls on the conveyor belt from the bar or the discharge port of
the dewatering machine. Driven by the electric drum, the material
moves from one end to the other, and the end is connected with the
trash can to deal with.
Main Features
1. The equipment is reliable in operation, with large conveying
capacity, long conveying distance, multi-point loading materials
and continuous conveying, etc.
2. The driving device adopts oil-cooled electric drum, with
protection grade IP55, compact structure, small floor space and
easy maintenance.
3. The equipment adopts spiral tensioning device to ensure the
safe, reliable and effective operation of the conveyor belt.
4. Conveyor belt material is butyl rubber, and adopts vulcanization
connection method, which is convenient for cleaning, corrosion
resistance and long life.
5. There are slag baffles on both sides of the upper trough-shaped
supporting rod, so that the slag sewage does not flow and overflow,
and the environment is clean.
6. Easy operation, no blockage, convenient maintenance, can be
arranged horizontally, and can be conveyed at an inclined angle. It
is an ideal equipment for conveying grille slag.
Main Parameters and Installation Size Chart
Outline and Installation Chart
Packing and Delivery
The whole plant machinery size are large as normal, so we will use
Waterproof cloth to pack all of them. The motor, gear box or other
easily damaged parts, we will put them into box. We have a
professional shipping department, they will try their best to save
your container quantity.
