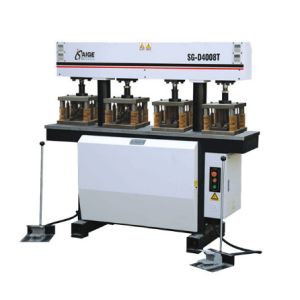

    SG-D4008T multi-head hydraulic press

    Ask Lasest Price
    Brand Name : KM
    Model Number : SG-D4008T
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5 Pieces per Month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    SG-D4008T multi-head hydraulic press

    SG-D4008T multi-head hydraulic press



    Product introduction: Product introduction

    This machine is used for punching and trimming of aluminum alloy doors and Windows, aluminum curtain wall, solar energy and industrial aluminum profiles. Because the machine adopts 4-cylinder independent control oil pressure system and has left and right foot switch, it can install 4 sets of various series molds at a time, and it is convenient and quick to change the molds.


    Technique data

    1, power supply... Three phase 380 v / 50 hz

    2, motor... 4KW

    3, the maximum pressure... 8000Mpa

    4, cylinder diameter... 4 x Φ 80

    5, gear pump displacement... 31mL/min

    6, the oil cylinder stroke... 60mm

    7, adjustable die handle size... 60mm

    8 and table size (length X width)... 1720mmX420mm

    9, the maximum size of the installation mold (length X width X height)................ 360mmX300mmX270mm

    10, the size of the machine... 1720mmX600mmX1500mm

    Total 11, machine... 603kg

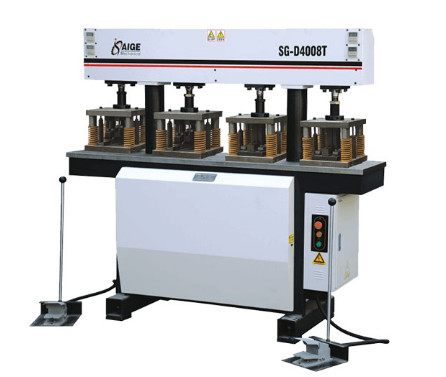

    Quality SG-D4008T multi-head hydraulic press for sale
