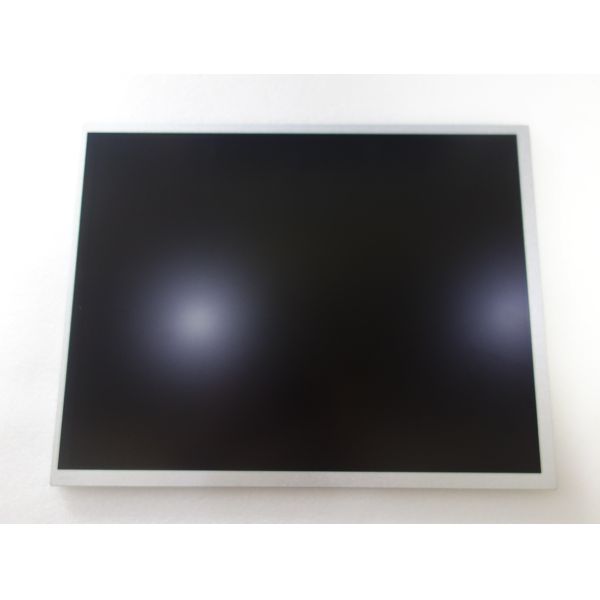

Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8

    Buy cheap Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8 from wholesalers

    Buy cheap Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8 from wholesalers
    • Buy cheap Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8 from wholesalers
    • Buy cheap Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8 from wholesalers

    Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G150XTN03.8
    Price : pls contact us
    Payment Terms : Western Union,PAPLY,BANK TRANSFER
    Supply Ability : 500
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8

    Industrial AUO LCM Lcd Panel 15.6 Inch 1024×768 G150XTN03.8


    G150XTN03.8 AUO 15" LCM 1024×768 Without Touchscreen And Industrial

    AUO G150XTN03.8 Mechanical Details

    Pixel Features :
    Pixel Format
    1024(RGB)×768, XGA
    Dot Pitch
    0.099×0.297 mm (H×V)
    Configuration
    RGB Vertical Stripe
    Pixel Pitch
    0.297×0.297 mm (H×V) [85PPI]
    Mechanical Size :
    Display Area
    304.128×228.096 mm (H×V)
    Bezel Area
    312.55×236.25 mm (H×V)
    Outline Dim.
    326.5×253.5 mm (H×V)
    Outline Depth
    6.3±0.5 mm
    Outline Features :
    Form Factor
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio
    4:3 (H:V)
    Shape Style
    Holes & Brackets :
    Side mounting holes (4-M2) on left, right bezel
    Other Features :
    Weight
    720g (Max.)
    Surface
    Antiglare, Hard coating (3H)
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
    • Back to Top

    AUO G150XTN03.8 Optical Details

    Basic Information :
    Brightness
    400 cd/m² (Typ.)
    Contrast Ratio
    800:1 (Typ.) (Transmissive)
    Viewing Angle
    80/80/70/80 (Typ.)(CR≥10)
    Optical Mode
    TN, Normally White, Transmissive
    Viewing Direction
    -
    Response Time
    5.7/3.2 (Typ.)(Tr/Td) ms
    Color Performance :
    Chromaticity
    Wx:0.313; Wy:0.329
    Color Numbers
    262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature
    6485K
    Uniformity
    1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt :
    NTSC Ratio
    60%
    sRGB
    84% coverage
    Adobe RGB
    63% coverage
    DCI-P3
    63% coverage
    Rec.2020
    45% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
