30000m3/H 17670CFM Warehouse Evaporative Cooler 2.2kW with Ducting Axial Flow

Add to Cart

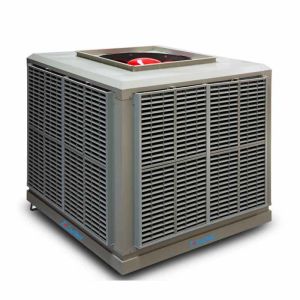

KCoolVent KCV-30BS Industrial Evaporative Cooler, Ducting Axial-flow 2.2kW 30,000 m3/h 17,670CFM for Large Space Cooling

Factory Model	Power (kW)	Air Flow (m3/h)	Specification & Features	Weight, Size & Loading quantity
KCV-30DS Down discharge	2.2kW	30,000 ㎥/h 17,670 CFM
			Power / current:2.2kW / 5.6A
			Voltage / Frequency 380-415V / 50~60Hz
			Motor class Grade F, IP55, copper wire motor
			Aluminum alloy 12-blade fan / Axial-flow
			LCD panel control	NW./GW.:170/-(KG)
			1 wind speed	Product size:
			Noise level <= 85dB(A)	L1500W1500H1350mm
			Water tank capacity 65L
KCV-30AS Side discharge	2.2kW	30,000 ㎥/h 17,670 CFM	Water consumption 65L/H	20'GP: 4pcs
			Ducting distance 25-30 meters	(SKD 9pcs)
			Air pressure 200Pa	40'HQ: 8pcs
			Sizes of cooling pad: 1000x1000x100mm *4 pcs	(SKD 16pcs)
			3pcs of cooling pad for side charge unit
			Size of air outlet: 800*800mm
			Applicable area(㎡)200-250 m²

KCV-30BS Top discharge	2.2kW	30,000 ㎥/h 17,670 CFM	1)Water shortage protection & alarm
			2)Stainless steel bottom base, top cover and
			stand column, plastic cooling pad frame with
			dust filters and cooling pads-5090
			3)Efficient fan motor-6pole 930RPM
			4)Auto-protetive device
			5)Balanced heavy-duty steel fan wheel
			6)Powder-painted, corrosion-resistant stainless
			steel in 0.8-1.2mm thick
